Knight Fire C012 G2 RSC, 2m Armoured 4-Wire, Anti-Corrosion, Grey
SKU: C012Brand: Knight Fire & Security
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Knight Fire C012 G2 RSC, 2m Armoured 4-Wire, Anti-Corrosion, Grey
£28.20
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Armoured 4-Wire (2x Switch, 2x Tamper)
- Tough, GF Nylon Housings
- Resin Sealed
- Low profile (14mm contact height)
- Made in UK
- Environmental Class III
Frequently bought together
Knight Fire & Security
Knight Fire C30 G2 Pencil Contact, 0.3m 4-Wire, Push-Fit, White
Sale price£2.35
In stock
Knight Fire & Security
Knight Fire C50 G2 Pencil Contact, 0.3m 4-Wire, Push-Fit, Flanged, White
Sale price£2.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Knight Fire & Security
Knight Fire D20BLK Single Reed Surface Contact, 5-Terminal, Grade 1, Black
Sale price£5.90
In stockProduct details

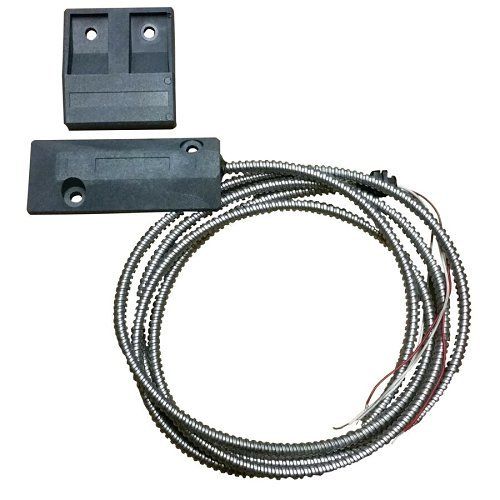

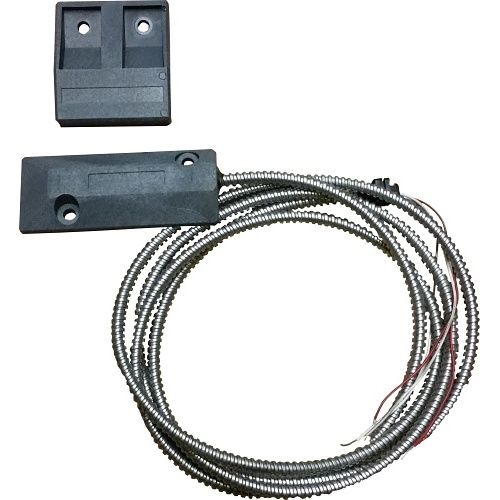

The C0 range of contacts are housed in glass-filled nylon casings – an extremely durable material that does not corrode like metal but offers similar strength. Ideal for use in locations prone to corrosion, such as seafront areas. Contact internals are sealed within the housing using an epoxy resin, with wiring exiting through a stainless-steel conduit.
Two switch wires and two tamper wires allow for easy wiring or for adding EOL resistors in a suitable junction box for a supervised circuit.
The C012 model features a 2m fly lead. Longer lengths are available on request.
Main Features
- Armoured 4-Wire (2x Switch, 2x Tamper)
- Tough, GF Nylon Housings
- Resin Sealed
- Low profile (14mm contact height)
- Made in UK
- Environmental Class III
Specifications
| Application/Usage | Rollershutter Door |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Energy Star | No |
| Environmental Certification | Environmental Class III (Outdoor Sheltered) |
| Features | Corrosion Resistant |
| Height | 14.00mm |
| Indoor/Outdoor | Indoor |
| Length | 101.00mm |
| Limited Warranty | 2-Year |
| Material | GF Nylon Plastic |
| Mount Type | Floor Mount |
| Product Line | Anti-Corrosion R/S |
| Product Series | C0 |
| Product Type | Rollershutter Contact |
| Security Grade | Grade 2 |
| Standard Gap | 62.00mm |
| TAA Compliant | No |
| Width | 42.00mm |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | Grey |
| Country of Origin | UK |
| INCERT Certified | No |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security Products Ltd |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Out of Scope |
Downloads
Product datasheet
Knight Fire C012 G2 RSC, 2m Armoured 4-Wire, Anti-Corrosion, Grey Product datasheet · C012 · PDF Open datasheet
