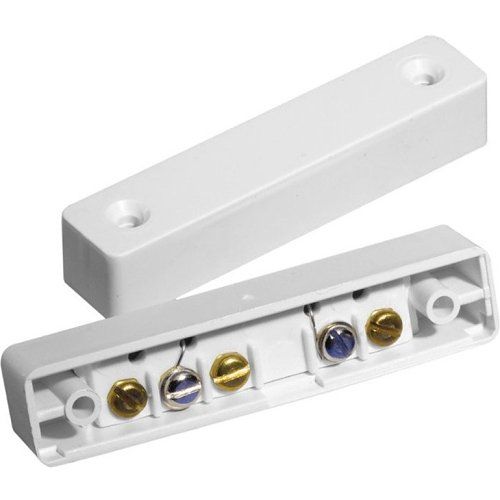

A basic 5-screw surface contact. Two nickel screws control the reed switch and 3 spare brass screws for any custom requirements. Supplied complete with fitting screws.
This contact is Normally Open (open circuit when secure) and commonly used with access control systems. See part code D20 for the Normally Closed security variant.
Main Features
5-Screw (2x Switch, 3x Spare)
Normally Open
Small Form Factor
Made in UK
Environmental Class II
Dimensions: 67mm x 14mm x 13mm
Terminals : 5-Screw
Terminals : 5-Screw
Specifications
Application/Usage
Door; Window
Connectivity Technology
Wired
Contact Type
Form B (SPST-NC)
Energy Star
No
Environmental Certification
Environmental Class II (Indoor Uncontrolled)
Indoor/Outdoor
Indoor
Input Voltage
100V DC; 120V AC
Length
67.00mm
Limited Warranty
1-Year
Material
Plastic
Mount Type
Surface Mount
Package Contents
5-Terminal, Normally Open Door Contact, Surface, White
