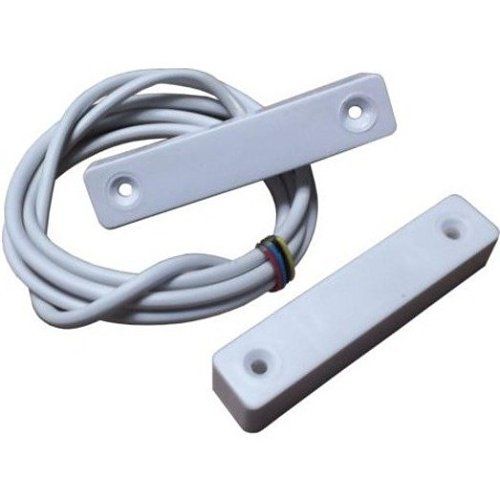

Knight Fire E50 4-Core Single Reed Sealed Surface Mount Contact, 1m
SKU: E50//ABrand: Knight Fire & Security
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 45 | 2 to 3 working days |
Knight Fire E50 4-Core Single Reed Sealed Surface Mount Contact, 1m
£3.30
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 4-Core (2x Switch, 2x Tamper)
- Resin Sealed
- Rear Cable Entry
- Made in UK
- Environmental Class III
Frequently bought together
Knight Fire & Security
Knight Fire E70 Single Reed 4-Core Sealed Mini Surface Contact, Grade 2, 1m Fly
Sale price£2.15
In stock
Knight Fire & Security
Knight Fire E70P G2 Mini Surface Contact, 1m 4-Core, Adhesive Fixing, White
Sale price£3.30
In stock
Knight Fire & Security
Knight Fire E90A G2 Mini Alu Surface Contact, 1m 4-Core
Sale price£3.80
In stock
Knight Fire & Security
Knight Fire E91 G2 Long Alu Surface Contact, 1m 4-Core
Sale price£6.40
In stock
Knight Fire & Security
Knight Fire E91/E92BK Angle Fixing Bracket for E91 and E92
Sale price£2.30
In stockProduct details
E50 is a Grade 2 contact, built with 1m of 4-core cable. Internals are fully sealed with a hard resin that provides excellent environmental and tamper resistance. Cable entry to the unit is directly at the rear, allowing installation with the cable fully concealed. EOL resistors are easy to add for a supervised circuit, using a suitable JB to house the additional wiring.
Comes complete with fitting screws.
Main Features
- 4-Core (2x Switch, 2x Tamper)
- Resin Sealed
- Rear Cable Entry
- Made in UK
- Environmental Class III
Specifications
| Application/Usage | Door; Window |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Environmental Certification | Environmental Class III (Outdoor Sheltered) |
| Features | Tamper Loop |
| Indoor/Outdoor | Indoor |
| Input Voltage | 1-100V DC; 125V AC |
| Length | 990.60mm |
| Limited Warranty | 2-Year |
| Material | Plastic |
| Mount Type | Surface Mount |
| Product Line | Surface Contact |
| Product Series | E |
| Product Type | Surface Contact |
| Security Grade | Grade 2 |
| Standard Gap | 20.00mm |
| TAA Compliant | No |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | White |
| Contact Material | Rhodium |
| INCERT Certified | No |
| Input Current | 500mA |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security Products Ltd |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| VdS Certified | No |
| WEEE Compliant | Out of Scope |
Downloads
Product datasheet
Knight Fire E50 4-Core Single Reed Sealed Surface Mount Contact, 1m Product datasheet · E50//A · PDF Open datasheet
