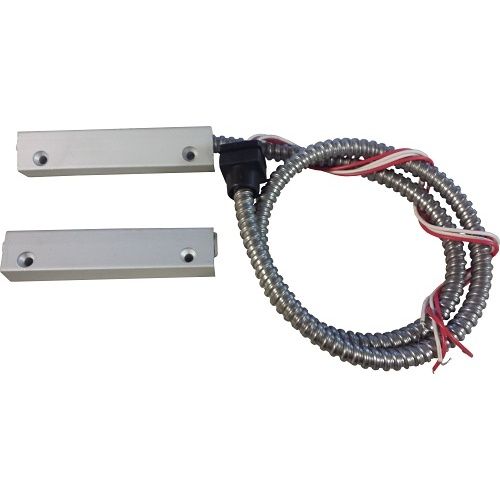

The E922M is a long block Grade 2 contact, fitted with 2m of armoured wiring. The internals are sealed, with the supplied fly lead exiting from the side. EOL resistors can be easily added for a supervised circuit, using a suitable JB to house the extra wiring. The contact and magnet housings are made from cast aluminium, providing a durable and hard-wearing product.
A bracket (E91/92BK) is available for installing the contact at right angles.
Comes complete with fitting screws.
Main Features
Armoured 4-Wire (2x Switch, 2x Tamper)
Aluminium Housings
Long Fly Lead
Made in UK
Environmental Class III
Operation Gap; 35mm
Approx Dimensions; 70mm x 14mm x 10mm
Terminals; 4-Wire protected armoured cable
Angled Bracket available; click here for E91/E92BK
