Knight Fire F10C G2 RSC, 1m Armoured 4-Wire
SKU: F10CBrand: Knight Fire & Security
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 40 | 2 to 3 working days |
Knight Fire F10C G2 RSC, 1m Armoured 4-Wire
£15.30
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Armoured 4-Wire (2x Switch, 2x Tamper)
- Resin Sealed
- Aluminium Housings
- Made in UK
- Environmental Class III
- Material: Aluminium
Frequently bought together
Knight Fire & Security
Knight Fire F10CMULTI G2 RSC, 1m Armoured 8-Core, Multi-Resistor
Sale price£19.80
In stock
Knight Fire & Security
Knight Fire F40 Heavy Duty Roller Shutter Contact N/O
Sale price£25.85
In stock
Knight Fire & Security
Knight Fire H10A G2 Alu Angle Contact, 0.5m Armoured 4-Wire
Sale price£11.30
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Knight Fire & Security
Knight Fire H10A2M G2 Alu Angle Contact, 2m Armoured 4-Wire
Sale price£25.75
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

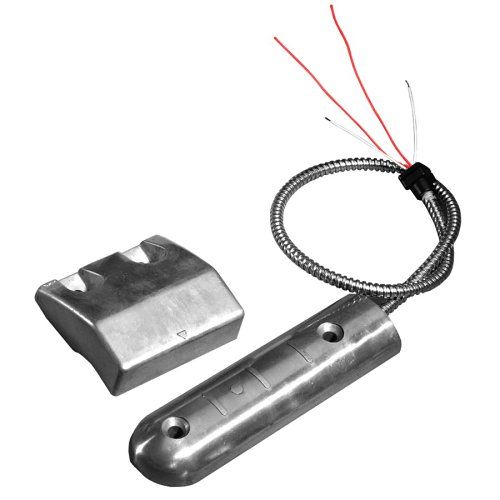

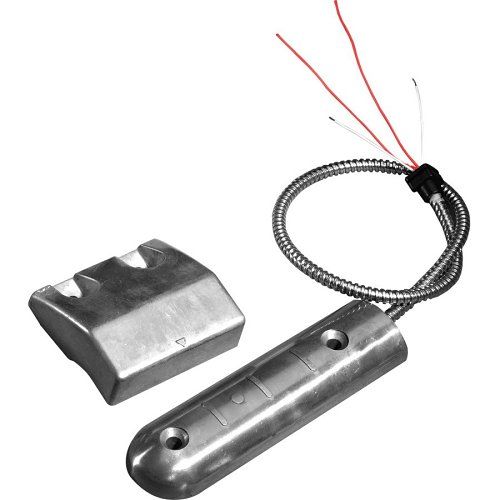

F10C is a heavy-duty R/S contact supplied with 1m of armoured wiring. The contact internals are sealed within the cast aluminium housing using a durable resin. The armoured 4-wire configuration allows easy addition of EOL resistors for a supervised circuit, using a suitable JB to accommodate the extra wiring.
The magnet is housed in its own metal casting, with both halves featuring raised markers for optimal alignment.
Main Features
- Armoured 4-Wire (2x Switch, 2x Tamper)
- Resin Sealed
- Aluminium Housings
- Made in UK
- Environmental Class III
- Material: Aluminium
Specifications
| Application/Usage | Rollershutter Door |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Energy Star | No |
| Environmental Certification | Environmental Class III (Outdoor Sheltered) |
| Indoor/Outdoor | Indoor |
| Input Voltage | 100V DC; 120V AC |
| Length | 1000.00mm |
| Limited Warranty | 1-Year |
| Material | Aluminium; Stainless Steel |
| Mount Type | Floor Mount |
| Product Line | R/S Contact |
| Product Series | F |
| Product Type | Rollershutter Contact |
| Security Grade | Grade 2 |
| Standard Gap | 50.00mm |
| TAA Compliant | No |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | Silver |
| Contact Material | Rhodium |
| INCERT Certified | No |
| Input Current | 500mA |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security Products Ltd |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Knight Fire F10C G2 RSC, 1m Armoured 4-Wire Product datasheet · F10C · PDF Open datasheet
