Knight Fire H10AMULTI G2 Alu Angle Contact, 0.5m Armoured 8-Core, Multi-Resistor
SKU: H10AMULTIBrand: Knight Fire & Security
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 1 | 2 to 3 working days |
Knight Fire H10AMULTI G2 Alu Angle Contact, 0.5m Armoured 8-Core, Multi-Resistor
£22.95
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
- 4k7/6k8
Frequently bought together
Knight Fire & Security
Knight Fire H10CB Waterproof Angled Contact 500mm, Grade 2, IP67, Anodised Aluminium
Sale price£21.45
In stock
Knight Fire & Security
Knight Fire H10CBA G2 Alu Angle Contact, 0.5m Armoured 4-Core, W/Proof
Sale price£40.30
In stock
Knight Fire & Security
Knight Fire H20A G2 Alu Angle Contact, 0.5m Armoured 6-Wire, DPST
Sale price£21.40
In stock
Product details

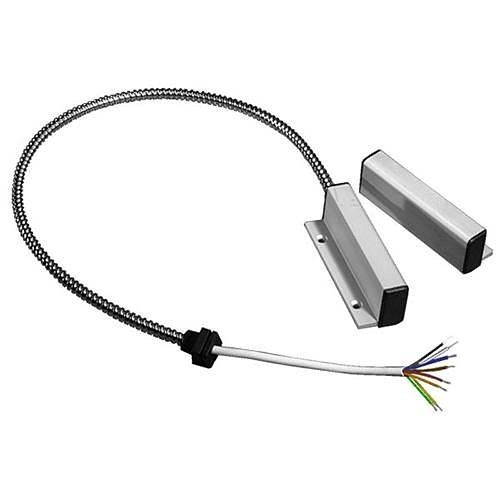

A universal heavy-duty angled contact ideal for G2 installations, supplied with 50cm of armoured 8-core cable. All electronics are PCB mounted and enclosed in a cast aluminium housing. This contact can be wired in series, allowing 2 or more contacts to share a zone. H10AMULTI features integral EOL resistors suitable for mainstream panels in the following selectable configurations by wire:
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
- 4k7/6k8
Note: This contact cannot be wired ‘4-wire’/without resistors. See part H10A for a resistorless version.
Comes complete with fitting screws.
Main Features
- Armoured 8-Core
- Multi-Resistor
- Aluminium Housings
- Angle Fitting
- Shared Zone Wiring
- Made in UK
- Environmental Class III
Specifications
| Application/Usage | Door; Window |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Energy Star | No |
| Environmental Certification | Environmental Class III (Outdoor Sheltered) |
| Indoor/Outdoor | Indoor |
| Limited Warranty | 2-Year |
| Material | Aluminium; Stainless Steel |
| Mount Type | Surface Mount |
| Product Line | Angle Contact |
| Product Series | H |
| Product Type | Angle Contact |
| TAA Compliant | No |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | Black |
| INCERT Certified | No |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Knight Fire H10AMULTI G2 Alu Angle Contact, 0.5m Armoured 8-Core, Multi-Resistor Product datasheet · H10AMULTI · PDF Open datasheet
