Knight Fire H10CBA G2 Alu Angle Contact, 0.5m Armoured 4-Core, W/Proof
SKU: H10CBABrand: Knight Fire & Security
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 2 | 2 to 3 working days |
Knight Fire H10CBA G2 Alu Angle Contact, 0.5m Armoured 4-Core, W/Proof
£40.30
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Armoured 4-Core (2x Switch, 2x Tamper)
- W/Proof Jacket Cable
- Sealed Construction
- Angle Fitting
- Made in UK
- Environmental Class IV
Frequently bought together
Knight Fire & Security
Knight Fire H20A G2 Alu Angle Contact, 0.5m Armoured 6-Wire, DPST
Sale price£21.40
In stock
Knight Fire & Security
Knight Fire J310 G3 Conduit Junction Box, 8+2 Way Terminals, W/Proof, White
Sale price£4.00
In stockProduct details

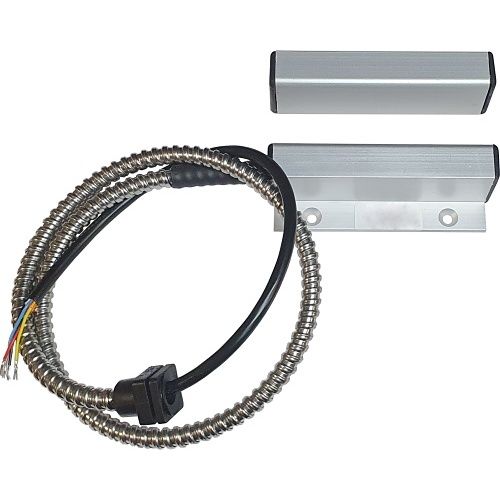

H10CBA is a heavy-duty angled contact supplied with a 50cm armoured fly lead. The internals of the contact and magnet halves are sealed within a cast aluminium housing. The armoured, rubberised 4-core cable provides excellent environmental resistance and allows easy addition of EOL resistors for a supervised circuit.
Supplied complete with fitting screws.
Main Features
- Armoured 4-Core (2x Switch, 2x Tamper)
- W/Proof Jacket Cable
- Sealed Construction
- Angle Fitting
- Made in UK
- Environmental Class IV
- Tamper; sealed unit
- Aluminium Angle Contact
- Single Reed
Specifications
| Application/Usage | Door; Window |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Energy Star | No |
| Environmental Certification | Environmental Class IV (Outdoor Exposed) |
| Indoor/Outdoor | Indoor; Outdoor |
| Limited Warranty | 2-Year |
| Material | Aluminium; Stainless Steel |
| Mount Type | Surface Mount |
| Product Line | Angle Contact |
| Product Series | H |
| Product Type | Angle Contact |
| Security Grade | Grade 2 |
| Standard Gap | 50.00mm |
| TAA Compliant | No |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | Black |
| INCERT Certified | No |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Knight Fire H10CBA G2 Alu Angle Contact, 0.5m Armoured 4-Core, W/Proof Product datasheet · H10CBA · PDF Open datasheet
