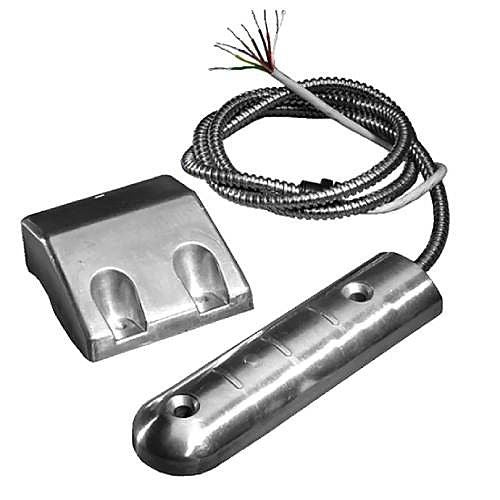

A universal heavy-duty R/S contact ideal for G2 installations, supplied with 1m of armoured 8-core cable. All electronics are PCB mounted and sealed in a cast aluminium housing with a durable resin. This contact can be wired in series, allowing two or more contacts to share a zone. F10CMULTI features integral EOL resistors suitable for mainstream panels in the following selectable configurations by wire:
1k/1k
2k2/2k2
2k2/4k7
4k1/4k1 (Guardall 8k2)
4k7/4k7
4k7/6k8
The magnet is also housed in its own metal casting, with both halves featuring raised markers for optimal alignment.
Note: This contact cannot be wired '4-wire'/without resistors. See part F10C for a resistorless version.
Main Features
Armoured 8-Core
Multi-Resistor
Resin Sealed
Shared Zone Wiring
Made in UK
Environmental Class III
Dimensions: 150mm x 40mm x 15m
Dimensions: 150mm x 40mm x 15m
Tamper: Sealed unit
Includes Resistors compatible with: Honeywell, Ademco, Orisec, Scantronic, Menvier, Texecom, Pyronix, Castle, Aritech, Europlex, Gardtec, HKC, Guardall and Inner Range Control Panels.
Specifications
Application/Usage
Rollershutter Door
Connectivity Technology
Wired
Contact Type
Form A (SPST-NO)
Energy Star
No
Environmental Certification
Environmental Class III (Outdoor Sheltered)
Features
Alarm; Armored Cable Lead Protection; End of Line (EOL) Resistor
