Shop all Knight Fire & Security

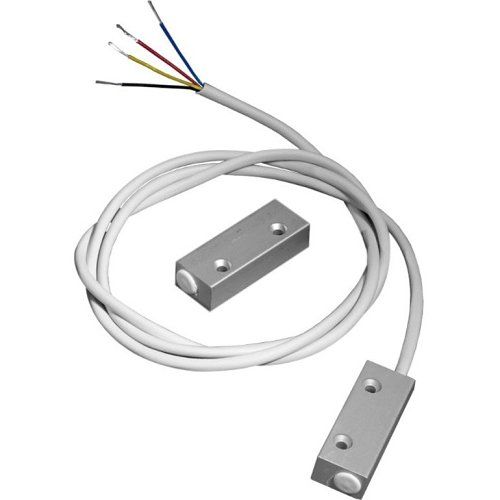

Knight Fire E90A G2 Mini Alu Surface Contact, 1m 4-Core
SKU: E90ABrand: Knight Fire & Security
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 34 | 2 to 3 working days |
Knight Fire E90A G2 Mini Alu Surface Contact, 1m 4-Core
£3.80
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 4-Core (2x Switch, 2x Tamper)
- Small Form Factor
- Aluminium Housings
- Made in UK
- Environmental Class III
- Dimensions: 40mm x 14mm x 10mm
Frequently bought together
Knight Fire & Security
Knight Fire E91 G2 Long Alu Surface Contact, 1m 4-Core
Sale price£6.40
In stock
Knight Fire & Security
Knight Fire E91/E92BK Angle Fixing Bracket for E91 and E92
Sale price£2.30
In stock
Knight Fire & Security
Knight Fire E92 G2 Long Alu Surface Contact, 0.5m Armoured 4-Core
Sale price£8.30
In stock
Knight Fire & Security
Knight Fire E922M G2 Long Alu Surface Contact, 2m Armoured 4-Core
Sale price£23.45
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Knight Fire & Security
Knight Fire E925M Armoured Cable, Grade 2, Aluminium Surface Contact, 5m
Sale price£52.80
In stockProduct details
E90A is a micro-sized Grade 2 contact, built with 1m of 4-core cable. Internals are sealed with the provided fly lead exiting from the side. EOL resistors are easy to add for a supervised circuit, using a suitable JB to house the additional wiring. Contact and magnet housings are made from cast aluminium for a durable and hard-wearing product.
Comes complete with fitting screws.
Main Features
- 4-Core (2x Switch, 2x Tamper)
- Small Form Factor
- Aluminium Housings
- Made in UK
- Environmental Class III
- Dimensions: 40mm x 14mm x 10mm
- Terminals: 4-Core Cable
- Terminals: 4-Core Cable
Specifications
| Application/Usage | Door; Window |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Energy Star | No |
| Environmental Certification | Environmental Class III (Outdoor Sheltered) |
| Indoor/Outdoor | Indoor |
| Input Voltage | 100V DC; 120V AC |
| Length | 1000.00mm |
| Limited Warranty | 1-Year |
| Material | Aluminium |
| Mount Type | Surface Mount |
| Product Line | Surface Contact |
| Product Series | E |
| Product Type | Surface Contact |
| Security Grade | Grade 2 |
| Standard Gap | 15.00mm |
| TAA Compliant | No |
| Thickness | 10.00mm |
| Width | 15.00mm |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | Silver |
| Contact Material | Rhodium |
| INCERT Certified | No |
| Input Current | 500mA |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security Products Ltd |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Knight Fire E90A G2 Mini Alu Surface Contact, 1m 4-Core Product datasheet · E90A · PDF Open datasheet
