Knight Fire D75MULTIB G2 Large Surface Contact, 4-Terminal, Multi-Resistor, Brown
SKU: D75BMULTIBrand: Knight Fire & Security
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 20 | 2 to 3 working days |
Knight Fire D75MULTIB G2 Large Surface Contact, 4-Terminal, Multi-Resistor, Brown
£4.65
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 2k2/6k8
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
Frequently bought together
Knight Fire & Security
Knight Fire D75MULTIBK G2 Large Surface Contact, 4-Terminal, Multi-Resistor, Black
Sale price£18.90
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Knight Fire & Security
Knight Fire E50 4-Core Single Reed Sealed Surface Mount Contact, 1m
Sale price£3.30
In stock
Knight Fire & Security
Knight Fire E70 Single Reed 4-Core Sealed Mini Surface Contact, Grade 2, 1m Fly
Sale price£2.15
In stock
Knight Fire & Security
Knight Fire E70P G2 Mini Surface Contact, 1m 4-Core, Adhesive Fixing, White
Sale price£3.30
In stockProduct details

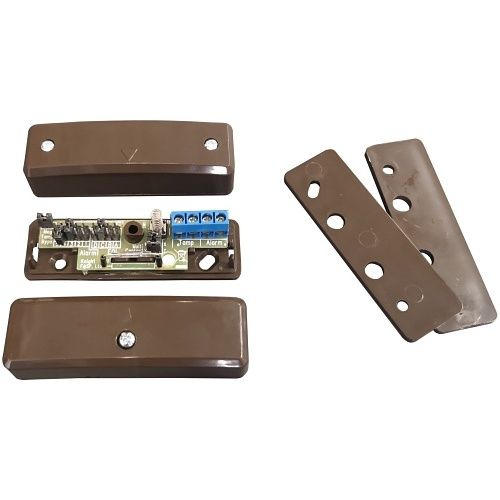

A universal, large surface contact ideal for G2 installations. All electronics are PCB mounted, with wire-clamping terminal blocks for easy wiring. This contact can be wired in series, allowing 2 or more contacts to share a zone and behave as a single unit. The D75MULTIB features integral EOL resistors suitable for mainstream panels in the following configurations, selected by shunt links on the PCB:
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 2k2/6k8
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
- 4k7/6k8
- 5k6/5k6
A no-resistor/dry configuration is also selectable for 4-wire installations where resistors are not required.
The tamper is a sprung microswitch, detecting removal of the contact lid.
Comes complete with 2 spacers and fitting screws.
Main Features
- 4-Terminal
- Multi-Resistor
- Microswitch Tamper
- Shared Zone Wiring
- Made in UK
- Environmental Class II
Specifications
| Application/Usage | Door; Window |
|---|---|
| Compatibility | Double Door |
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Energy Star | No |
| Environmental Certification | Environmental Class II (Indoor Uncontrolled) |
| Indoor/Outdoor | Indoor |
| Limited Warranty | 1-Year |
| Material | Plastic |
| Mount Type | Surface Mount |
| Product Line | Surface Contact |
| Product Series | D |
| Product Type | Surface Contact |
| Security Grade | Grade 2 |
| Standard Gap | 35.00mm |
| TAA Compliant | No |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | Brown |
| INCERT Certified | No |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Not Applicable |
Downloads
Product datasheet
Knight Fire D75MULTIB G2 Large Surface Contact, 4-Terminal, Multi-Resistor, Brown Product datasheet · D75BMULTI · PDF Open datasheet
