Name: Knight Fire D20B G1 Surface Contact, 5-Screw, Brown
Brand: Knight Fire & Security
SKU: D20B
Price: 1.45 GBP
Availability: InStock

Knight Fire D20B G1 Surface Contact, 5-Screw, Brown

Roll over image to zoom in Click on image to zoom

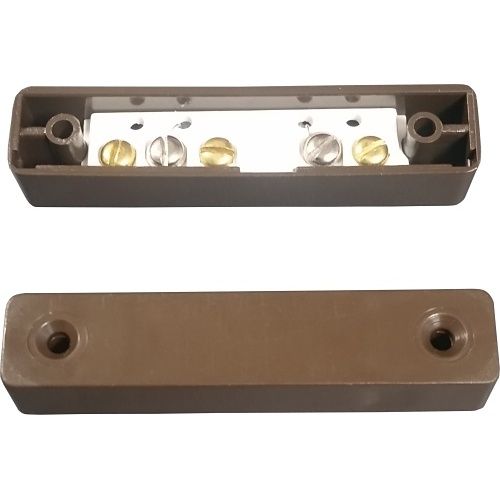

A basic 5-screw surface contact. Two nickel screws to govern the reed switch and 3 spare brass screws for any custom requirements. Comes complete with fitting screws.

Main Features

5-Screw (2x Switch, 3x Spare)
Small Form Factor
Made in UK
Environmental Class II
Dimensions: 67mm x 14mm x 13mm
Terminals : 5- Screw

Specifications

Application/Usage	Door; Window
Connectivity Technology	Wired
Contact Type	Form A (SPST-NO)
Energy Star	No
Environmental Certification	Environmental Class II (Indoor Uncontrolled)
Indoor/Outdoor	Indoor
Input Voltage	100V DC; 120V AC
Limited Warranty	1-Year
Material	Plastic
Mount Type	Surface Mount
Package Contents	D20B Magnetic Contact Fixing Screws
Product Line	Surface Contact
Product Series	D
Product Type	Surface Contact
Security Grade	Grade 1
Standard Gap	20.00mm
TAA Compliant	No
ATEX Compliant	No
CE Marking	Yes
CNBOP Certified	No
Colour	Brown
Contact Material	Rhodium
Country of Origin	UK
INCERT Certified	No
Input Current	500mA
LPCB Certified	No
Manufacturer	Knight Fire & Security Products Ltd
NF Certified	No
NF&A2P Certified	No
RoHS Compliant	Compliant
SBSC Certified	No
Termination Style	Screw Terminals
TIA Listed	No
UL Listed	No
VdS Certified	No
WEEE Compliant	Compliant
