Knight Fire XA41MULTI G3 Flush Contact, 4-Terminal, Multi-Resistor, White
SKU: XA41MULTIBrand: Knight Fire & Security
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 38 | 2 to 3 working days |
Knight Fire XA41MULTI G3 Flush Contact, 4-Terminal, Multi-Resistor, White
£12.30
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 2k2/6k8
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
Frequently bought together
Knight Fire & Security
Knight Fire XEND24 G3 Surface Contact, 4-Terminal, Multi-Resistor, White
Sale price£9.10
In stock
Knight Fire & Security
Knight Fire YA40 G3 Flush Contact, 1m 8-Core, Multi-Resistor, White
Sale price£12.30
In stock
Knight Fire & Security
Knight Fire YA405M G3 Flush Contact, 5m 8-Core, Multi-Resistor, White
Sale price£34.95
In stock
Product details

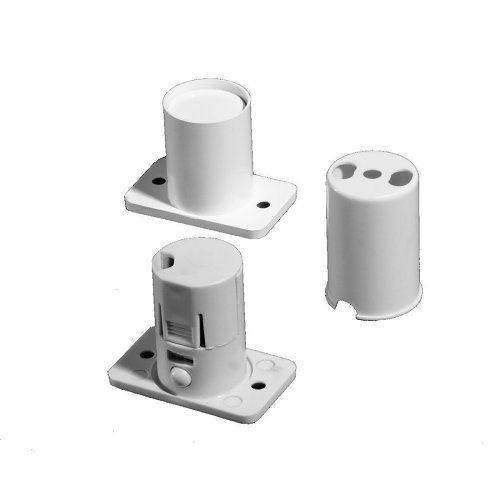

A Grade 3 contact, ideal for double door/shared zone use. In addition to a sprung microswitch that detects removal from the fitting recess, this sensor also features magnetic interference detection.
XA41MULTI includes various resistors on swappable modules, offering the following configurations:
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 2k2/6k8
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
- 4k7/6k8
- 5k6/5k6
- 10k/10k
A no-resistor/dry configuration is also available for 4-wire installations where resistors are not needed.
Along with fitting screws, XA41MULTI is supplied with a contact sheath, useful for installations where the fitting recesses have been drilled slightly wider than 20mm.
Main Features
- 4-Terminal
- Configurable Resistor Modules
- Magnetic Interference Detection
- Microswitch Tamper
- 20mm Barrel
- Shared Zone Wiring
- Made in UK
- Environmental Class II
- Note: Add suffix B for Brown
- Operation Gap : 14mm Approx
Specifications
| Application/Usage | Door; Window |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Depth | 30.00mm |
| Diameter | 20.00mm |
| Energy Star | No |
| Environmental Certification | Environmental Class II (Indoor Uncontrolled) |
| Indoor/Outdoor | Indoor |
| Input Voltage | 100V DC; 120V AC; 15V DC |
| Limited Warranty | 2-Year |
| Material | Plastic |
| Mount Type | Flush Mount |
| Package Contents |
|
| Product Line | Flush Contact |
| Product Series | XA |
| Product Type | Flush Contact |
| Security Grade | Grade 3 |
| Standard Gap | 14.00mm |
| TAA Compliant | No |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | White |
| Contact Material | Rhodium |
| INCERT Certified | No |
| Input Current | 500mA |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security Products Ltd |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Knight Fire XA41MULTI G3 Flush Contact, 4-Terminal, Multi-Resistor, White Product datasheet · XA41MULTI · PDF Open datasheet
