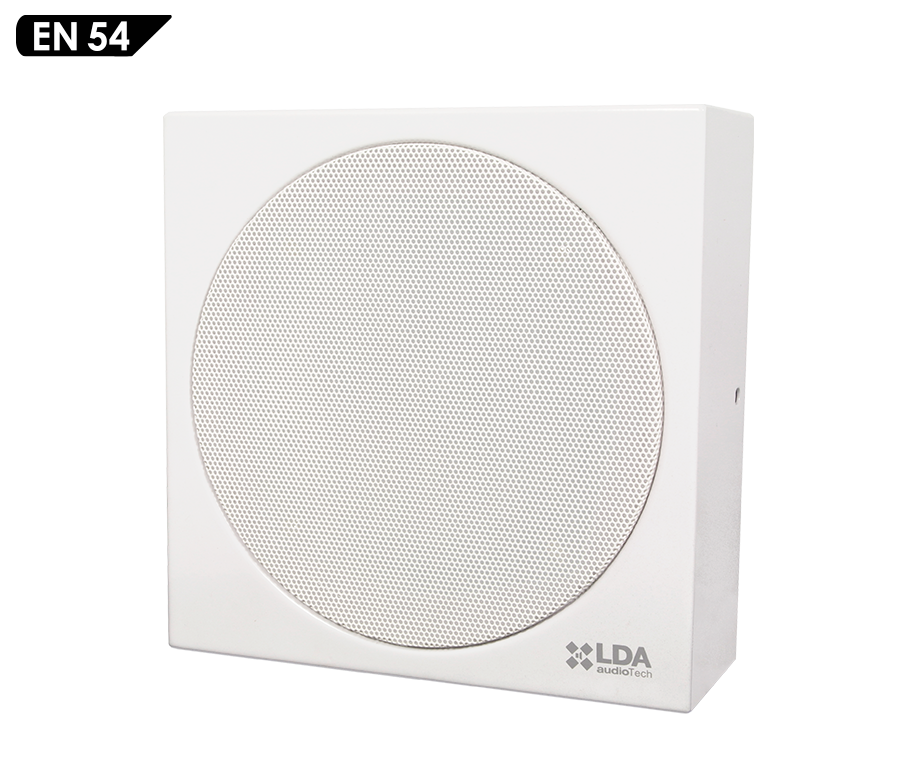

LDA Audio Tech DS-60TN1 (590.003.005) 5" Wall Mount Speaker

The LDA Audio Tech DS-60TN1 (590.003.005) is a 5-inch surface or wall-mounted speaker from LDA’s DS-60TN range, certified to EN 54-24 for voice alarm and public address systems. It connects to 100V or 70V line amplifiers and has a metal enclosure that protects against fire and vandalism.

Key features

• EN 54-24 certified for voice alarm systems
• 5-inch surface/wall mount loudspeaker
• Metal enclosure protects against fire and vandalism
• Ceramic terminal block and thermal fuse
• Selectable power taps for 100V and 70V lines

Technical specifications

• Driver size: 5in
• Power taps at 100V: 6 / 3 / 1.5 / 0.75W
• Power taps at 70V: 3 / 1.5 / 0.75 / 0.375W
• Ingress protection: IP21C
• Colours in range: white (RAL 9016) or black (RAL 9005)
• Certification: EN 54-24
