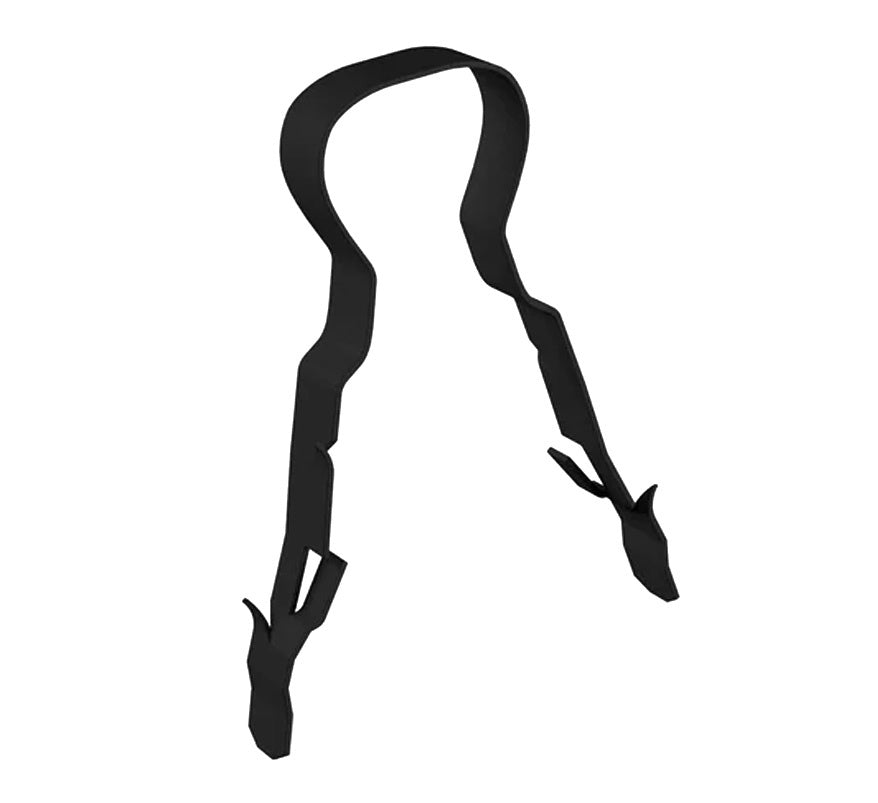

The LINIAN FireClip™ 6-8mm Double (1LCB682) is a single-component, fire-rated push-in cable clip for round cables, such as fire and security cables. This double version holds two cables side by side. Drill a hole, slide the clip over the cable and push it into the wall, with no plugs, screws, washers or nail-in clips required. It provides 18th Edition compliant support for fire-resistant cable runs and can be used with mini trunking. Supplied in a pack of 100.
Key features
- 18th Edition (BS 7671) compliant, fire-rated cable fixing
- Fire resistant to more than 1200°C
- Tested to BS EN 50200 (120 minutes) and DIN 4102-12 (90 minutes)
- Corrosion resistant and UV stable
- Single-component design: no plugs, screws or washers needed
- CE and CA certified; made in Britain
- Suitable for round cables and PVC trunking; can also be used as an anchor fixing for wire
- Smoke emission tested to the London Underground standard
Technical specifications
- Part number: 1LCB682
- Cable type: double (two cables)
- Cable overall diameter: 6-8mm
- Equivalent cleat size: CC4
- Colour: Black
- Recommended spacing: 300mm
- Hole diameter: 5mm for softer substrates (plaster, plasterboard) or 6mm for harder substrates (concrete, masonry, timber)
- Hole depth: 30mm
- Maximum tensile load: up to 24kg
- Standards referenced by LINIAN: BS 7671 18th Edition, BS EN 50200 PH120, BS 8519:2010, DIN 4102-12 E90
- Pack quantity: 100
