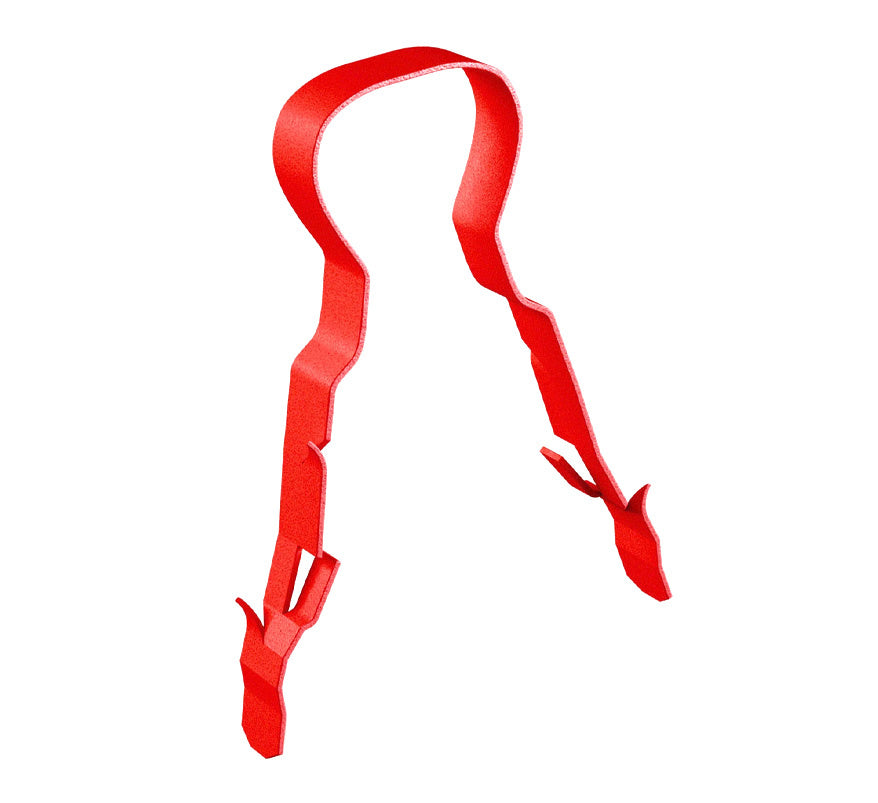

The LINIAN FireClip™ 9-11mm Double in red (1LCR9112) is a single-component, fire-rated push-in clip for round cables such as fire and security cables and soft skin or flex cables, with an overall diameter of 9-11mm. This double version holds two cables side by side.
It meets the 18th Edition requirement for cables to be supported against premature collapse in the event of fire. Drill a hole, slide the clip over the cable and push it into the wall: no plugs, screws, washers or nail-in clips are needed. It can also be used inside PVC trunking and with mini trunking. Supplied in a pack of 100.
Key features
- 18th Edition (BS 7671) compliant, fire-rated cable fixing
- Fire resistant to more than 1200 °C
- BS EN 50200: 120 minutes fire time; DIN 4102-12: 90 minutes fire time
- Corrosion resistant and UV stable
- Single-component design: no plugs, screws or washers needed
- CE and CA certified; made in Britain
- Suitable for round cables and PVC trunking, and as an anchor fixing for wire
- Smoke emission tested to the London Underground standard
Technical specifications
- Part number: 1LCR9112
- Cable type: double (two cables)
- Cable overall diameter: 9-11mm
- Equivalent cleat size: CC5
- Colour: red
- Recommended spacing: 300 mm
- Hole diameter: 6 mm (±0.5 mm, varies for best fixing according to the substrate)
- Hole depth: 30 mm
- Maximum tensile load: 24 kg
- Standards referenced by LINIAN: BS 7671 18th Edition (and Amendment 3), BS EN 50200 PH120, BS 8519:2010, DIN 4102-12 E90
- Pack quantity: 100
