LINIAN FireClip 9-11mm Single, Black (Pack of 100) (1LCB911)
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
- 18th Edition compliant fire-rated fixing
- Fire-resistant to over 1200°C
- BS EN 50200: 120 minutes fire time; DIN 4102-12: 90 minutes fire time
- Single-component design with no plugs, screws or washers
- Corrosion resistant and UV stable for internal and external use
- Suitable for round cables, PVC trunking and anchor fixings for wire
Frequently bought together
Product details
The LINIAN FireClip 1LCB911 is a fire rated cable clip for a single 9-11mm round cable, meeting the 18th Edition requirement to support cables against premature collapse in a fire.

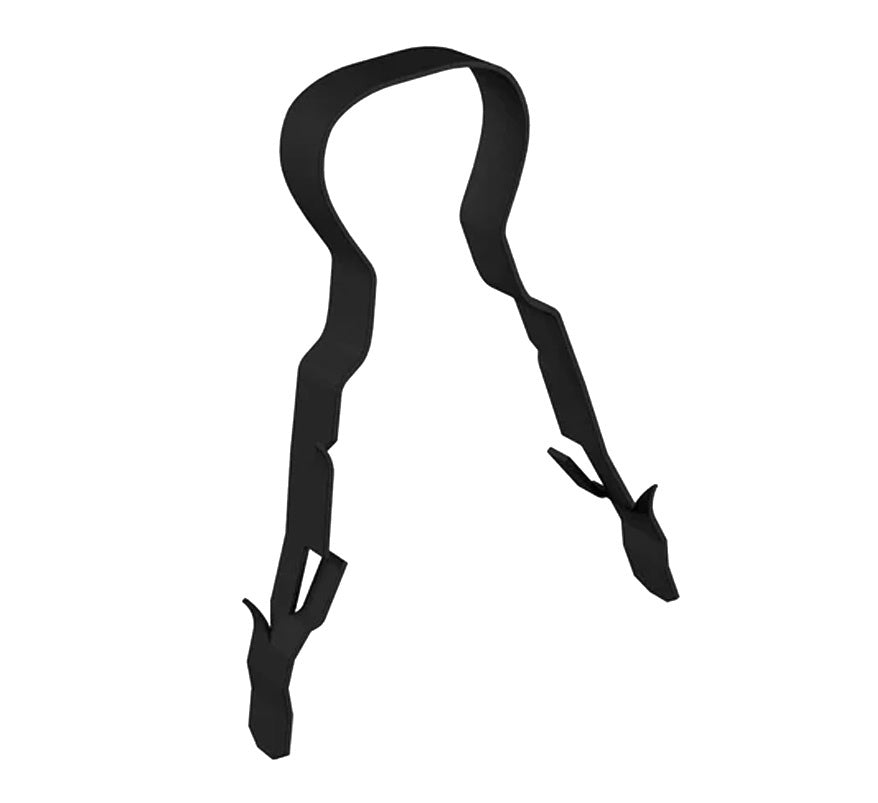

The LINIAN FireClip™ (1LCB911) is a single-component, fire-rated cable fixing for a single round cable with an overall diameter of 9-11mm, in black. It meets the 18th Edition (BS 7671) requirement for cables to be supported against premature collapse in the event of fire. To install, simply drill a hole, slide the clip over the cable and push it in by hand: no plugs, screws, washers, cleats or nail-in clips are needed. Supplied in a pack of 100.
Key features
- 18th Edition compliant fire-rated fixing
- Fire-resistant to over 1200°C
- BS EN 50200: 120 minutes fire time; DIN 4102-12: 90 minutes fire time
- Single-component design with no plugs, screws or washers
- Corrosion resistant and UV stable for internal and external use
- Suitable for round cables, PVC trunking and anchor fixings for wire
- CE and UKCA certified
- Made in Britain
Technical specifications
- Part number: 1LCB911
- Cable type: single (one cable)
- Cable overall diameter: 9-11mm
- Equivalent cleat size: CC5
- Colour: black
- Recommended spacing: 300 mm
- Hole diameter: 6 mm (±0.5 mm, varies with substrate)
- Hole depth: 30 mm
- Maximum tensile load: 24 kg
- Pack quantity: 100
Used for: fixing fire alarm, emergency lighting and other cables such as FP200-type fire-resistant cable to walls and ceilings.
Frequently asked questions
How is FireClip installed?
Drill a 6mm hole 30mm deep, slide the clip over the cable and push it in by hand: no plugs, screws, washers, cleats or nail-in clips are needed.
What spacing should be used?
The recommended spacing is 300mm.
Can it be used outdoors?
Yes. It is corrosion resistant and UV stable for internal and external use.
