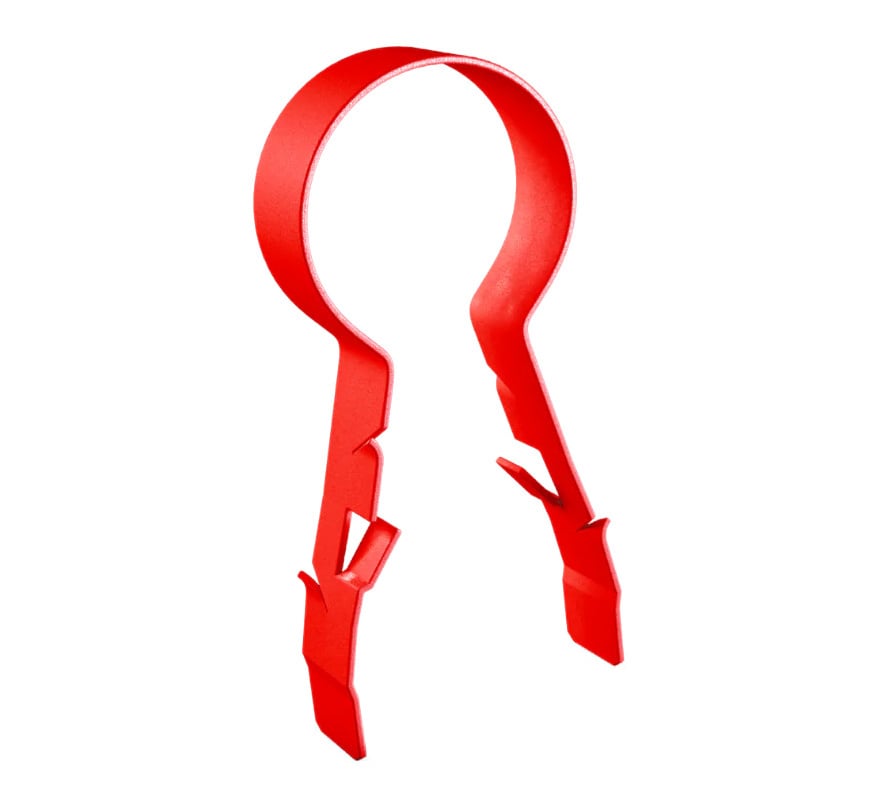

The LINIAN SuperClip™ 12-14mm (1LSR1214) is a single-component, fire-rated push-in fixing for SWA cables, PVC or metal conduit and bunched cables. Drill a hole, slide the clip over the cable or conduit and push it in, with no saddles, plugs, screws or cleats required. It provides 18th Edition compliant, fire-rated support indoors or outdoors and suits neat EV, solar and conduit installations. Supplied in a pack of 25.
Key features
- 18th Edition (BS 7671) compliant, fire-rated cable fixing
- Fire resistant to more than 1200°C
- Tested to BS EN 50200 (120 minutes) and DIN 4102-12 (90 minutes)
- Corrosion resistant and UV stable
- Single-component design: no plugs, screws or washers needed
- CE and CA certified; made in Britain
- Suitable for SWA cable, PVC/metal conduit and bunched cables; can also be used as an anchor fixing for wire or with steel cable ties
Technical specifications
- Part number: 1LSR1214
- Cable/conduit diameter: 12-14mm
- Equivalent cleat size: CC6
- Colour: Red
- Recommended spacing: 300mm
- Hole diameter: 10mm (±0.5mm, varies with substrate)
- Hole depth: 40mm
- Maximum tensile load: up to 44kg
- Standards referenced by LINIAN: BS 7671 18th Edition, BS EN 50200 PH120, BS 8519:2010, DIN 4102-12 E90
- Pack quantity: 25
