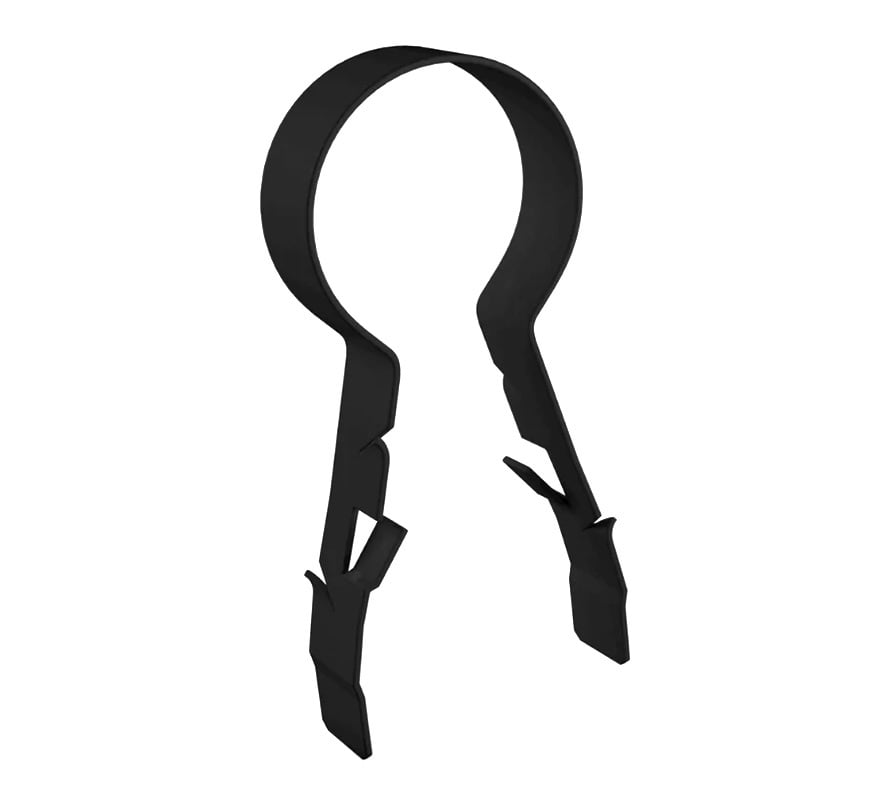

LINIAN SuperClip 15-18mm, Black (Pack of 25) (1LSB1518)

The LINIAN SuperClip™ 15-18mm (1LSB1518) is a heavy-duty, single-component, fire-rated fixing for larger cables and conduit with an overall diameter of 15-18mm, in black. It is suitable for SWA cables, PVC and metal conduit and bunched cables, and can be used with steel cable ties and outdoor trunking. It meets the 18th Edition (BS 7671) requirement for cables to be supported against premature collapse in the event of fire. Drill a hole, slide the clip over the cable or conduit and push it in: no plugs, screws, washers or cleats needed. Supplied in a pack of 25.

Key features

• 18th Edition compliant fire-rated fixing
• Fire-resistant to over 1200°C
• BS EN 50200: 120 minutes fire time; DIN 4102-12: 90 minutes fire time
• Single-component design with no plugs, screws or washers
• Corrosion resistant and UV stable
• Suitable for SWA cables, PVC/metal conduit, bunched cables and anchor fixings for wire
• CE and UKCA certified
• Made in Britain

Technical specifications

• Part number: 1LSB1518
• Cable/conduit overall diameter: 15-18mm
• Equivalent cleat size: CC7
• Colour: black
• Recommended spacing: 300 mm
• Hole diameter: 10 mm (±0.5 mm, varies with substrate)
• Hole depth: 40 mm
• Maximum tensile load: 44 kg
• Pack quantity: 25
