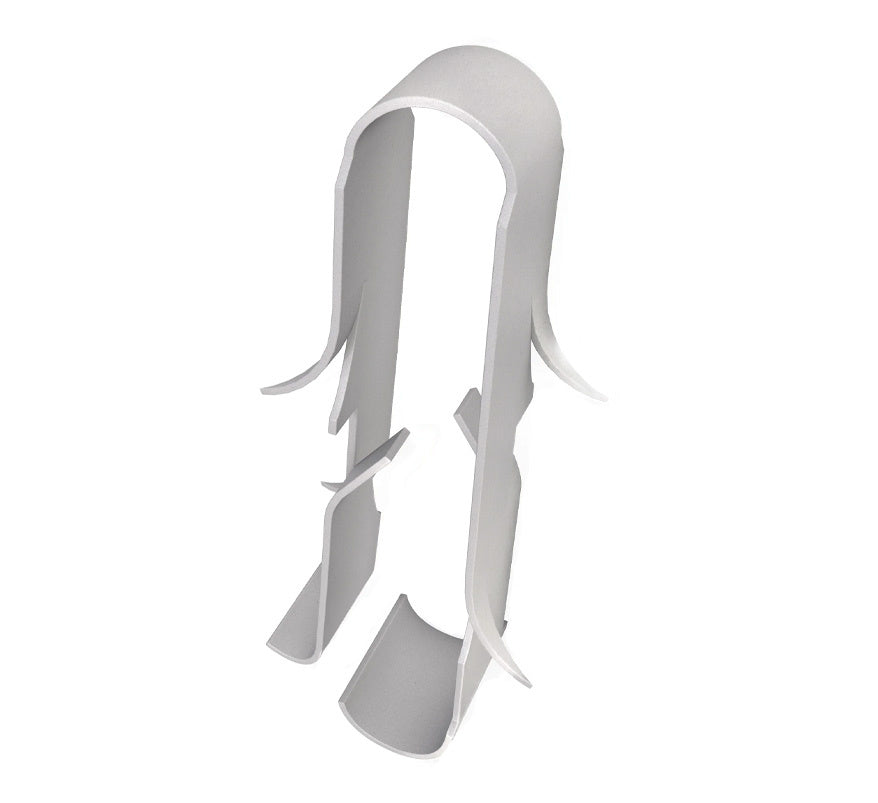

The LINIAN NanoClip™ 2mm (1LCW002) is a fire-safe, 18th Edition compliant push-in clip for 2mm fibre optic cables and other small-diameter cables, such as hearing loop, small signal, CCTV and alarm cables. Insert the cable into the open side of the clip and push it into a pre-drilled hole, with no plugs, screws or washers required. Suitable for domestic, commercial and industrial installations. Supplied in a pack of 100.
Key features
- 18th Edition (BS 7671) compliant, fire-rated cable fixing
- Fire resistant to more than 1200°C
- Tested to BS EN 50200 (120 minutes) and DIN 4102-12 (90 minutes)
- Corrosion resistant and UV stable
- Single-component design: no plugs, screws or washers needed
- CE and CA certified; made in Britain
- Designed for fibre optic, hearing loop, small signal, CCTV and alarm cables
- Smoke emission tested to the London Underground standard
Technical specifications
- Part number: 1LCW002
- Cable size: 2mm
- Cable type: single
- Colour: White
- Recommended spacing: 300mm
- Hole diameter: 3mm for softer substrates (plaster, plasterboard) or 3.5-4.5mm for harder substrates (concrete, masonry, timber)
- Maximum tensile load: up to 3.7kg, depending on substrate
- Pack quantity: 100
