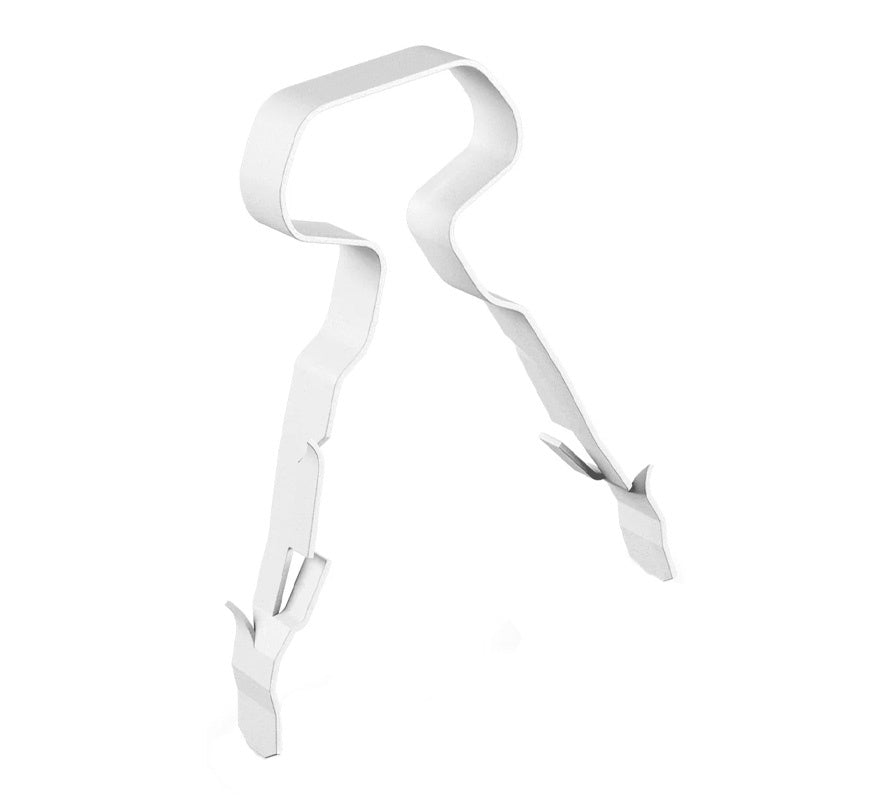

The LINIAN T&E Clip™ 4mm in white (1LTEW004) is a single-component, fire-rated push-in fixing for 4mm flat twin and earth cable (624Y twin and earth PVC cable to BS 6004). It is also suitable for cpc cabling, use within PVC trunking and as an anchor fixing for wire.
It meets the 18th Edition requirement for cables to be supported against premature collapse in the event of fire. Drill a hole, slide the clip over the cable and push it in: no plugs, screws, washers or nail-in clips are needed. Supplied in a pack of 100.
Key features
- 18th Edition (BS 7671) compliant, fire-rated cable fixing
- Fire resistant to more than 1200 °C
- BS EN 50200: 120 minutes fire time; DIN 4102-12: 90 minutes fire time
- Corrosion resistant and UV stable
- Single-component design: no plugs, screws or washers needed
- CE and CA certified; made in Britain
- Suitable for flat twin and earth, cpc cabling and PVC trunking
- Anchor fixings for wire and bunched cable
- Available in grey or white for cables from 1mm to 10mm
Technical specifications
- Part number: 1LTEW004
- Cable size: 4mm twin and earth
- Colour: white
- Recommended spacing: 300 mm
- Hole diameter: 5 mm suggested for softer substrates (plaster, plasterboard) or 6 mm for harder substrates (concrete, masonry, timber)
- Hole depth: 30 mm
- Maximum tensile load: 24 kg
- Standards referenced by LINIAN: BS 7671 18th Edition (and Amendment 3), BS EN 50200 PH120, BS 8519:2010, DIN 4102-12 E90
- Pack quantity: 100
