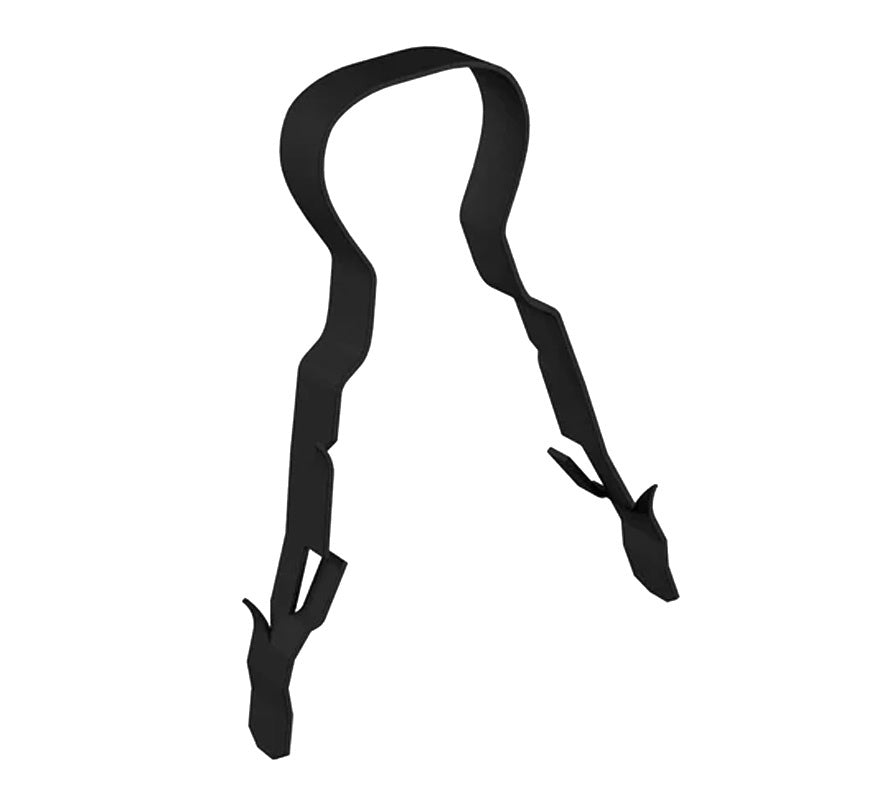

The LINIAN FireClip™ (1LCB406) is a single-component, fire-rated cable fixing for a single round cable with an overall diameter of 4-6mm, in black. It meets the 18th Edition (BS 7671) requirement for cables to be supported against premature collapse in the event of fire. To install, simply drill a hole, slide the clip over the cable and push it in by hand: no plugs, screws, washers, cleats or nail-in clips are needed. Supplied in a pack of 100.
Key features
- 18th Edition compliant fire-rated fixing
- Fire-resistant to over 1200°C
- BS EN 50200: 120 minutes fire time; DIN 4102-12: 90 minutes fire time
- Single-component design with no plugs, screws or washers
- Corrosion resistant and UV stable for internal and external use
- Suitable for round cables, PVC trunking and anchor fixings for wire
- CE and UKCA certified
- Made in Britain
Technical specifications
- Part number: 1LCB406
- Cable type: single (one cable)
- Cable overall diameter: 4-6mm
- Equivalent cleat size: CC3
- Colour: black
- Recommended spacing: 300 mm
- Hole diameter: 6 mm (±0.5 mm, varies with substrate)
- Hole depth: 30 mm
- Maximum tensile load: 24 kg
- Pack quantity: 100
