LINIAN FireClip 4-6mm Single, White (Pack of 100) (1LCW406)

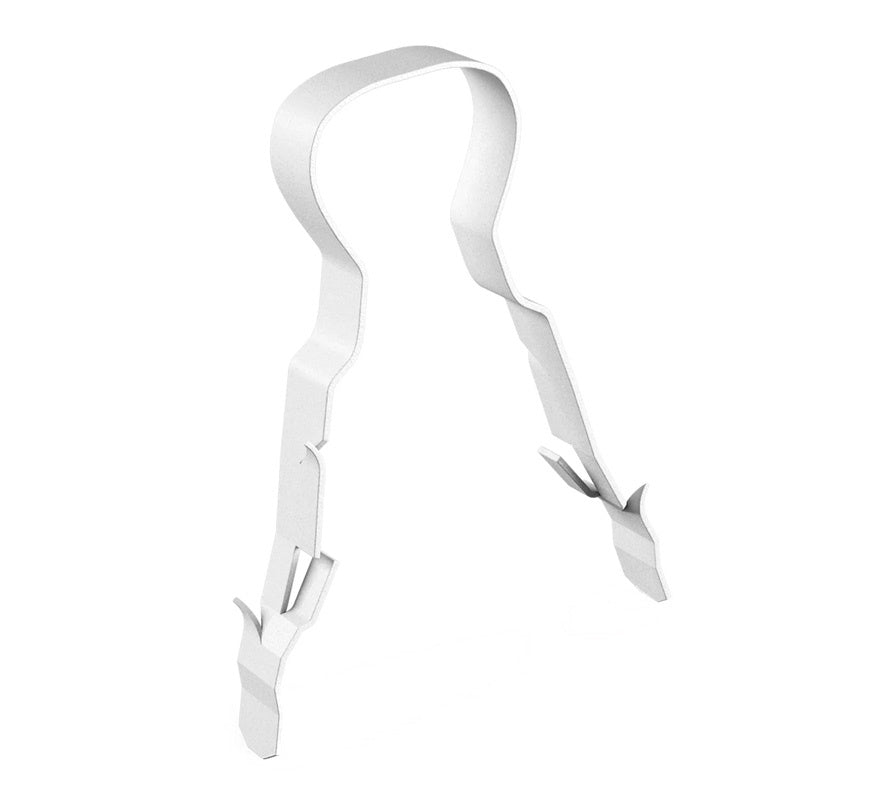

The LINIAN FireClip™ (1LCW406) is a single-component, fire-rated cable fixing for a single round cable with an overall diameter of 4-6mm, in white. It meets the 18th Edition (BS 7671) requirement for cables to be supported against premature collapse in the event of fire. To install, simply drill a hole, slide the clip over the cable and push it in by hand: no plugs, screws, washers, cleats or nail-in clips are needed. Supplied in a pack of 100.

Key features

• 18th Edition compliant fire-rated fixing
• Fire-resistant to over 1200°C
• BS EN 50200: 120 minutes fire time; DIN 4102-12: 90 minutes fire time
• Single-component design with no plugs, screws or washers
• Corrosion resistant and UV stable for internal and external use
• Suitable for round cables, PVC trunking and anchor fixings for wire
• CE and UKCA certified
• Made in Britain

Technical specifications

• Part number: 1LCW406
• Cable type: single (one cable)
• Cable overall diameter: 4-6mm
• Equivalent cleat size: CC3
• Colour: white
• Recommended spacing: 300 mm
• Hole diameter: 6 mm (±0.5 mm, varies with substrate)
• Hole depth: 30 mm
• Maximum tensile load: 24 kg
• Pack quantity: 100
