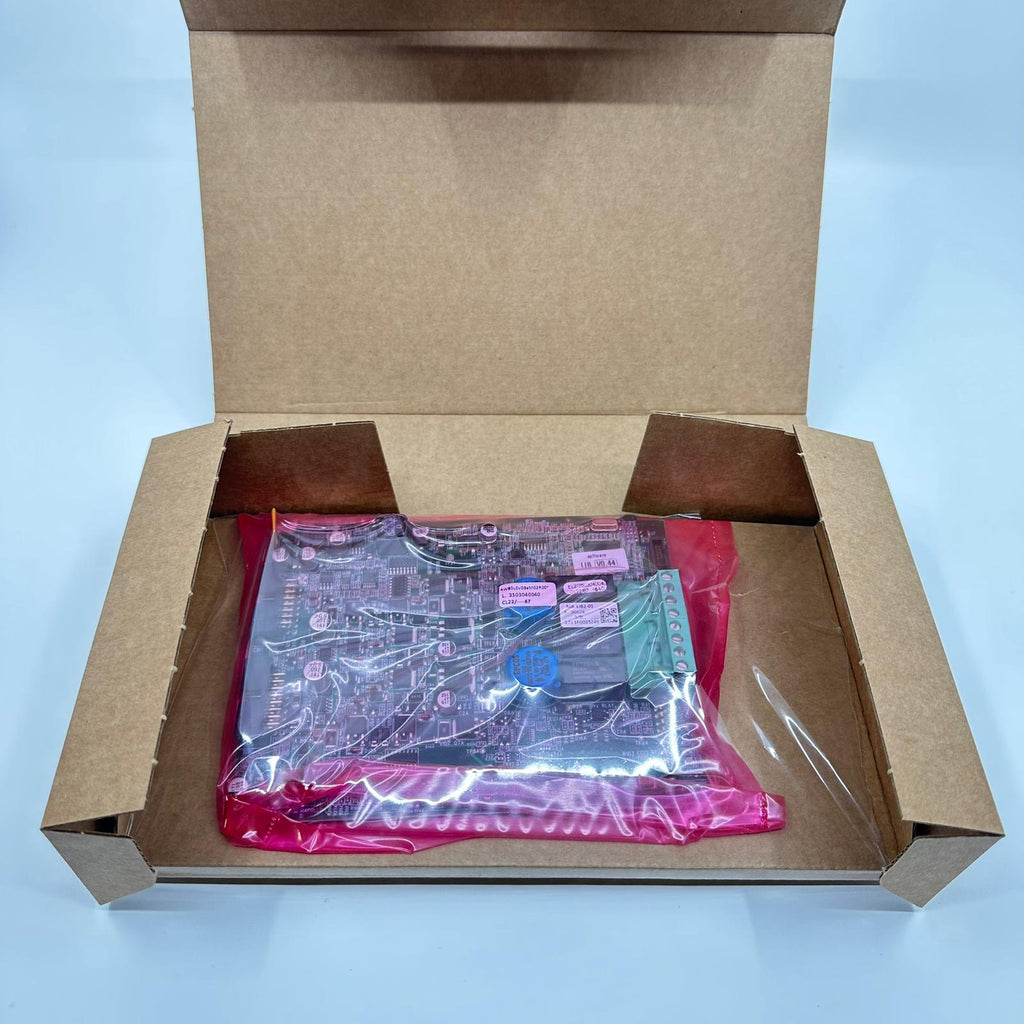

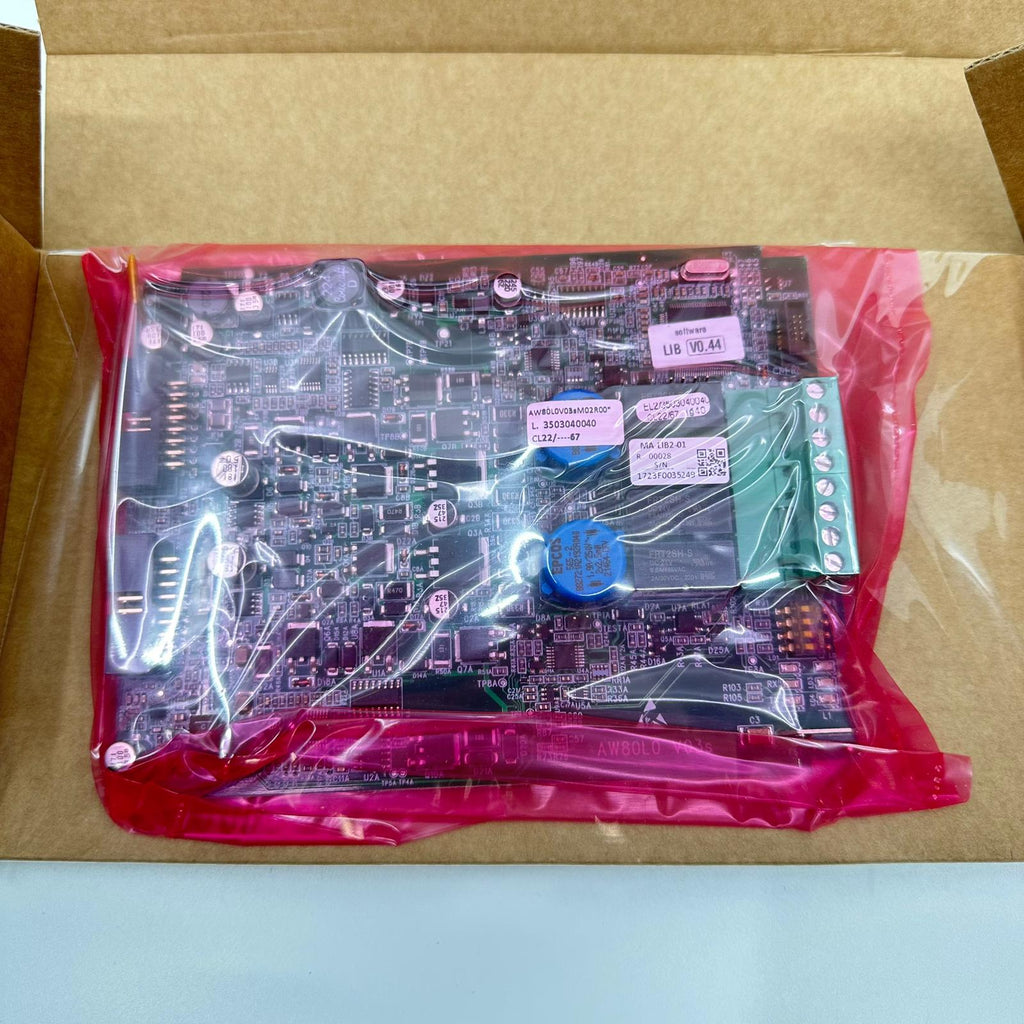

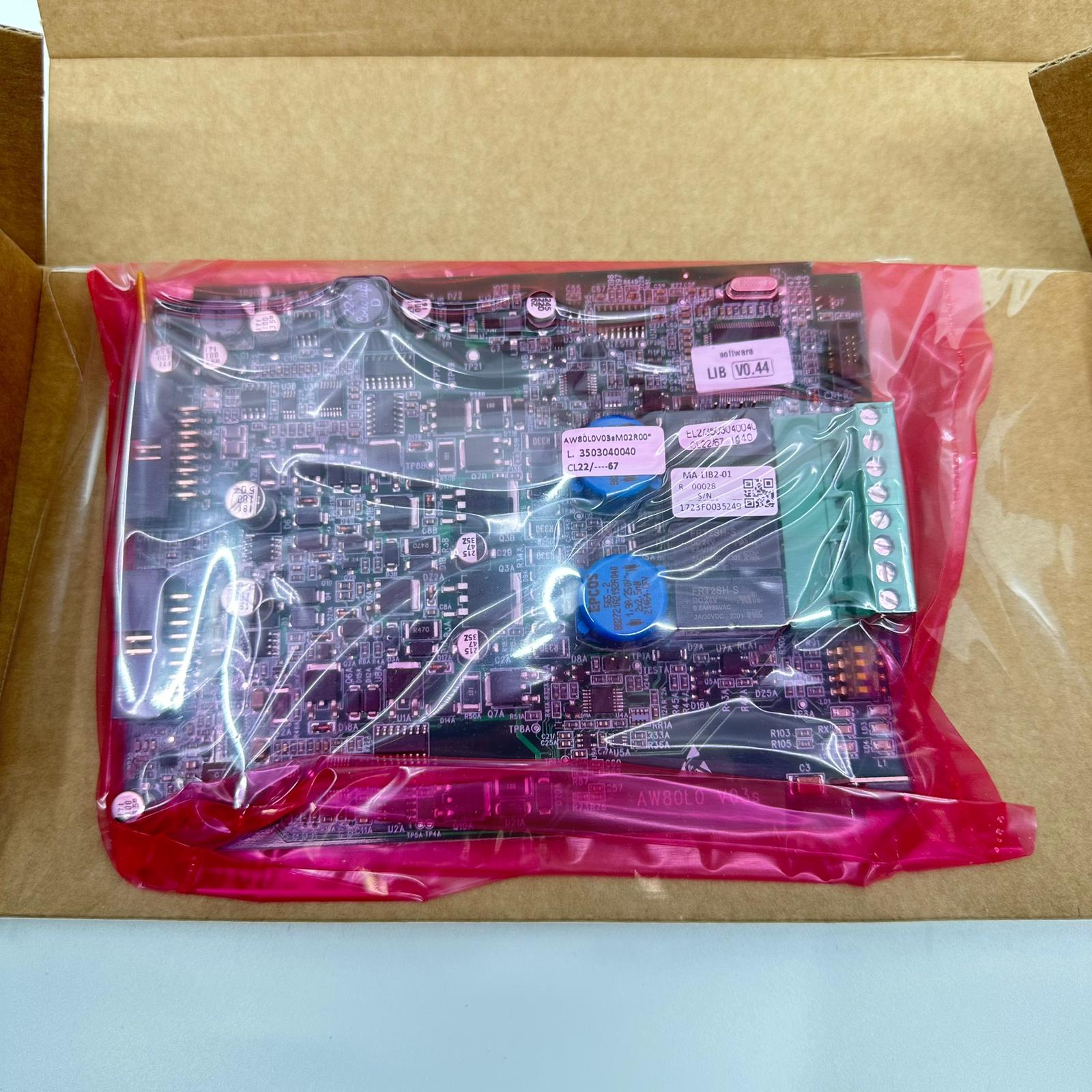

The MA-LIB2-01 is a 2-loop expansion card for the Morley-IAS MAX MA-8000 addressable fire alarm control panel. It supports the System Sensor, Morley-IAS and Apollo protocols. The MA-8000 has 4 loops in its basic configuration, and fitting two MA-LIB2 boards expands it to 8 loops in the same enclosure. Mounting fixtures are included.
Key features
- Adds 2 addressable loops to the MA-8000
- Up to two MA-LIB2 cards per MA-8000, taking the panel from 4 to 8 loops
- Supports System Sensor, Morley-IAS and Apollo protocols
- Up to 99 detectors and 99 input/output modules per loop (198 addresses per loop) with System Sensor or Morley-IAS devices
- 750 mA per loop, giving more power for EN 54-23 VAD devices
Technical specifications
- Compatible panel: Morley-IAS MAX MA-8000
- Loops per card: 2
- Maximum additional dual-loop cards per MA-8000: 2
- Loop power: 750 mA per loop
- Addresses: 1-99 (set by rotary switches on devices)
- Panel operating temperature: -5°C to +40°C, humidity 5% to 95% non-condensing
