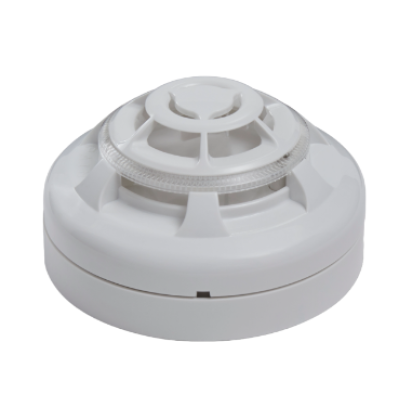

Nittan EV-H2-CS High Temperature Heat Detector
£20.55
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Category CS heat sensor (84°C) for higher-temperature environments
- Fully compatible with Evolution analogue addressable systems
- Backward compatible with the EV-H-A1R and EV-H-CS detectors
- Evolution FSK communication protocol
- Address stored in EEPROM and set with a handheld programmer
- Omniview 360° LED alarm indication
Frequently bought together
Nittan
Nittan EVC-IR Conventional Dual Band IR Flame Detector (F04-60044)
Sale price£424.10
In stockProduct details
The Nittan EV-H2-CS is an analogue addressable Category CS heat detector for the Nittan Evolution system, intended for areas with higher ambient temperatures where a standard heat detector would be unsuitable. It is a backward-compatible replacement for the earlier EV-H-CS detector.
Key features
- Category CS heat sensor (84°C) for higher-temperature environments
- Fully compatible with Evolution analogue addressable systems
- Backward compatible with the EV-H-A1R and EV-H-CS detectors
- Evolution FSK communication protocol
- Address stored in EEPROM and set with a handheld programmer
- Omniview 360° LED alarm indication
Specification
| Product code | EV-H2-CS |
|---|---|
| Nittan part number | F15-82221 |
| Brand | Nittan |
| Range | Evolution analogue addressable |
| Heat category | CS |
| Operating voltage | 20-38V DC |
| Quiescent current | 300µA |
| Alarm current | 6.0mA (LED on) |
| Approval | EN 54-5:2017 / A1:2018 |
