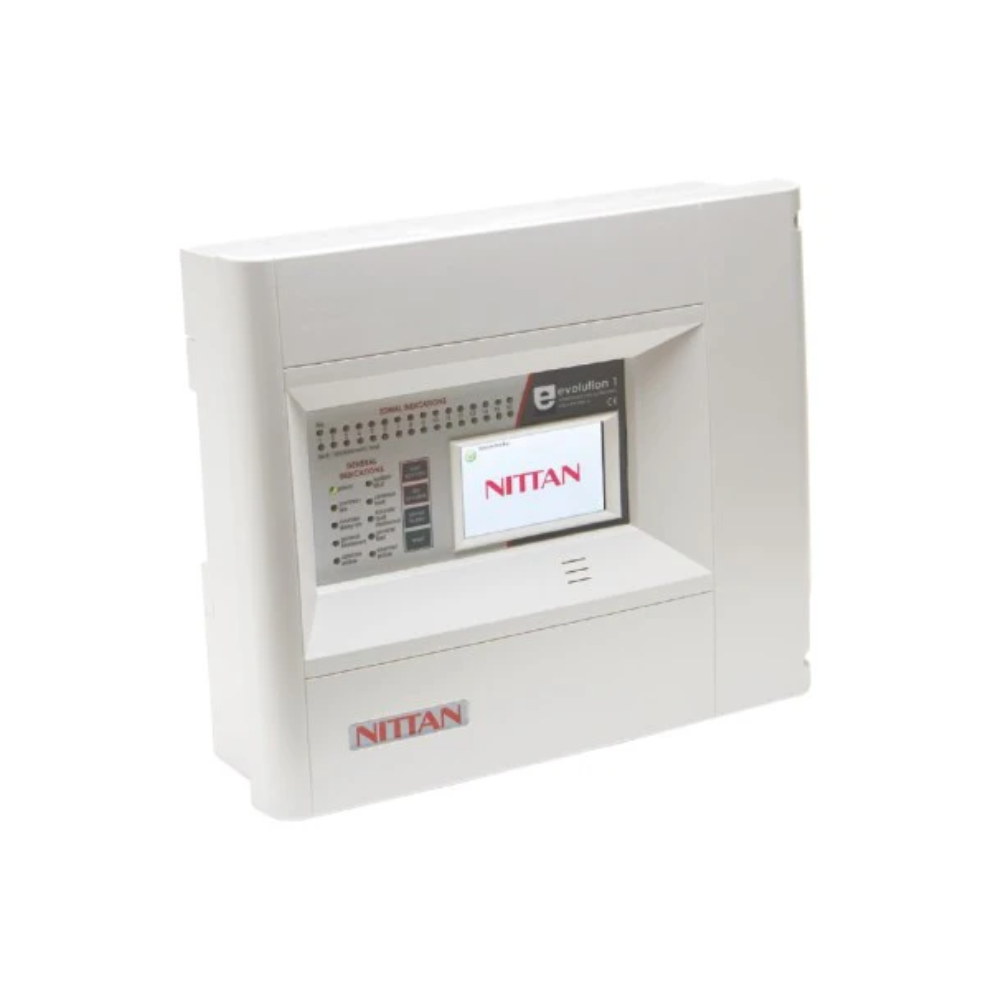

The Nittan evolution 1 (part no. F12-83101) is a single-loop analogue addressable fire alarm control panel with a 4.3-inch colour touch screen. It is fully compatible with the Nittan Evolution range of detection and alarm devices and is certified to EN 54-2 and EN 54-4.
Cause and effect can be set up on the panel itself or with the PC configuration tool and then downloaded. Panels can be networked, up to 16 in total, without extra hardware. The ABS enclosure has a fully removable front cover to make cabling and termination easier.
Key features
- 4.3-inch colour touch screen with an intuitive menu structure
- Up to 254 devices on the loop and 254 zones
- Full cause-and-effect programming at the panel or with the PC configuration tool
- Network up to 16 panels
- 2 x configurable RS485 ports
- Up to 8 password-protected users
- Switch-mode power supply
Technical specifications
- Mains supply: 230 V AC (+10% / -15%), 50/60 Hz
- Operating current: 1.0 A max.
- System voltage: 24 V DC nominal
- Loop current: 500 mA max.; loop length up to 2 km
- Fire and fault relays: 1 x each, 230 V AC at 1 A
- Enclosure rating: IP30 (indoor use)
- Conventional sounder outputs: 2 x 100 mA at 24 V DC
- Charger voltage: 27.6 V DC
- Batteries: up to 2 x 7.0 Ah 12 V DC sealed lead acid
- Enclosure: W 370 x H 311 x D 113 mm
- Weight: 2.7 kg without batteries (7.35 kg with batteries)
- Standards: EN 54-2:1997 + A1:2006; EN 54-4:1997 + A1:2002 + A2:2006
Note: Nittan advises that panels with firmware 22.0.0 or newer cannot be networked with panels running firmware 21.09.05.20 or older.
