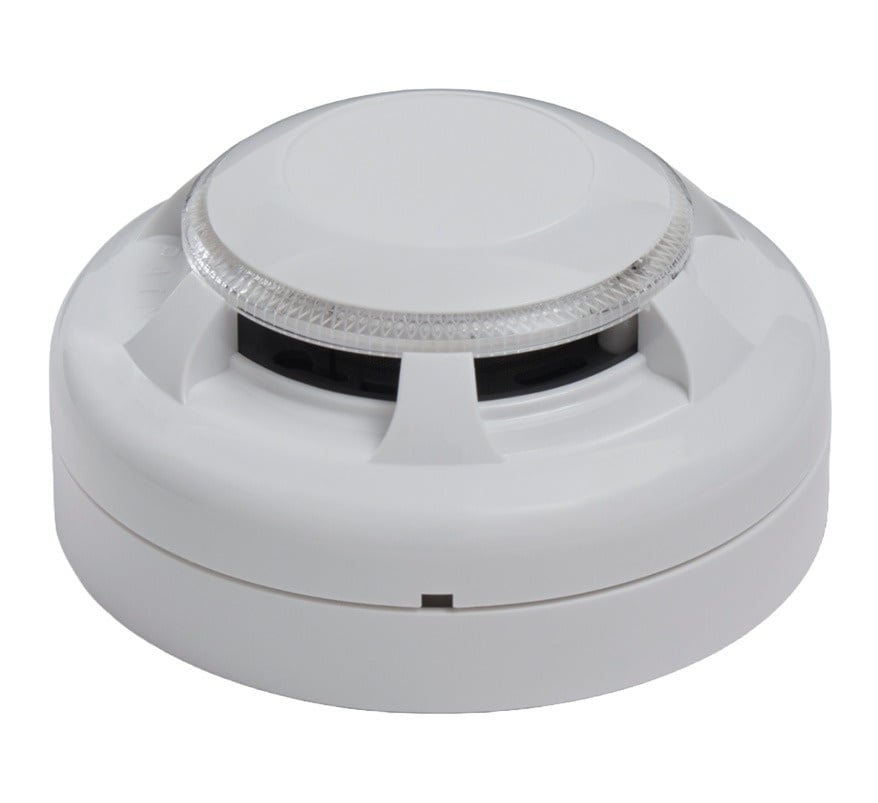

The Nittan EV-PY (part no. F14-82120) is an analogue addressable optical smoke detector for Nittan Evolution systems. It is designed as a backward-compatible replacement for the EV-P and works fully with Evolution analogue addressable panels.
It uses Nittan's "PY" smoke sensing chamber. A spherical feature in the chamber improves light scattering, and an orange LED improves response across the fire spectrum. A fine stainless-steel micromesh keeps out dirt, dust and even the smallest insects, helping to prevent false alarms.
Key features
- Orange optic LED and PY-type chamber
- 3 sensitivity settings
- Drift compensation
- Backward compatible with the EV-P
- Evolution FSK protocol
- EEPROM addressed with a programmer
- Omniview 360° alarm LED
Technical specifications
- Operating voltage: 20 to 38 V DC
- Quiescent current: 300 µA
- Alarm current (LED on): 6.0 mA
- Standard: EN 54-7:2018
- Part number: F14-82120
