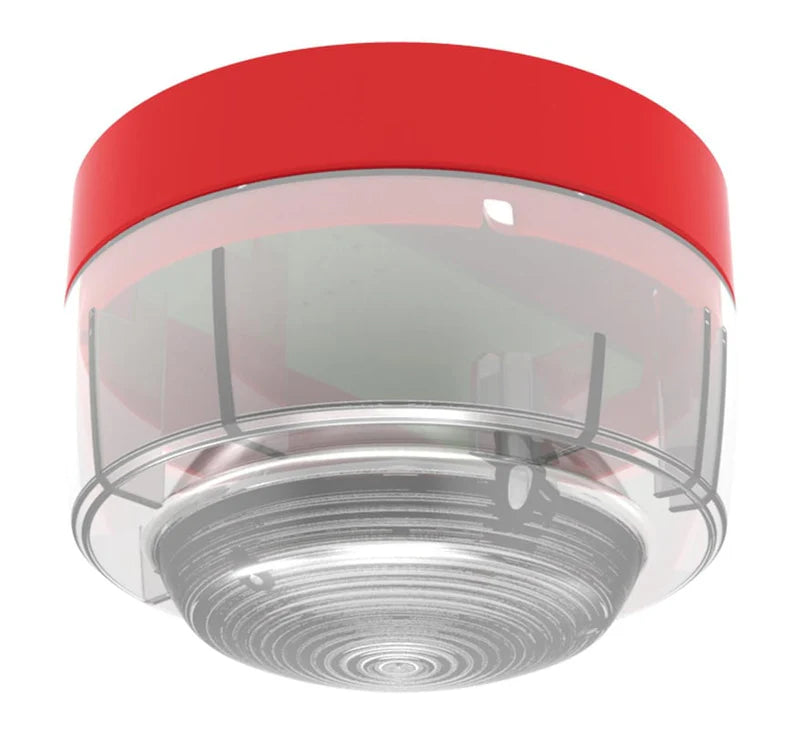

The CWST-RW-S5 is a conventional (non-addressable) EN 54-23 visual alarm device (VAD) from the Notifier ENScape range, with a red body, clear lens and cool white flash. It mounts on walls or ceilings, is supplied with a low profile base and is suitable for 12 V and 24 V fire alarm systems.
Key features
- High output LEDs with advanced optics and lens design for omni-directional light coverage
- Suitable for wall and ceiling mounting
- Synchronised flash
- Soft-start feature as standard
- Suitable for 12 V and 24 V systems
- Approved to EN 54-23, categories C and W
- Low profile base included
Technical specifications
- Body: red; lens: clear; flash: cool white
- EN 54-23 classification: W-2.4-9.0 and C-3-9.5 / C-6-9.5 / C-9-9.5
- Operating voltage: 9 to 29 V DC
- Current: 26 mA at 29 V DC
- Flash frequency: 0.5 Hz
- Dimensions (Ø x H): 100 x 72 mm (low profile base)
- Weight: 164 g (low profile base)
