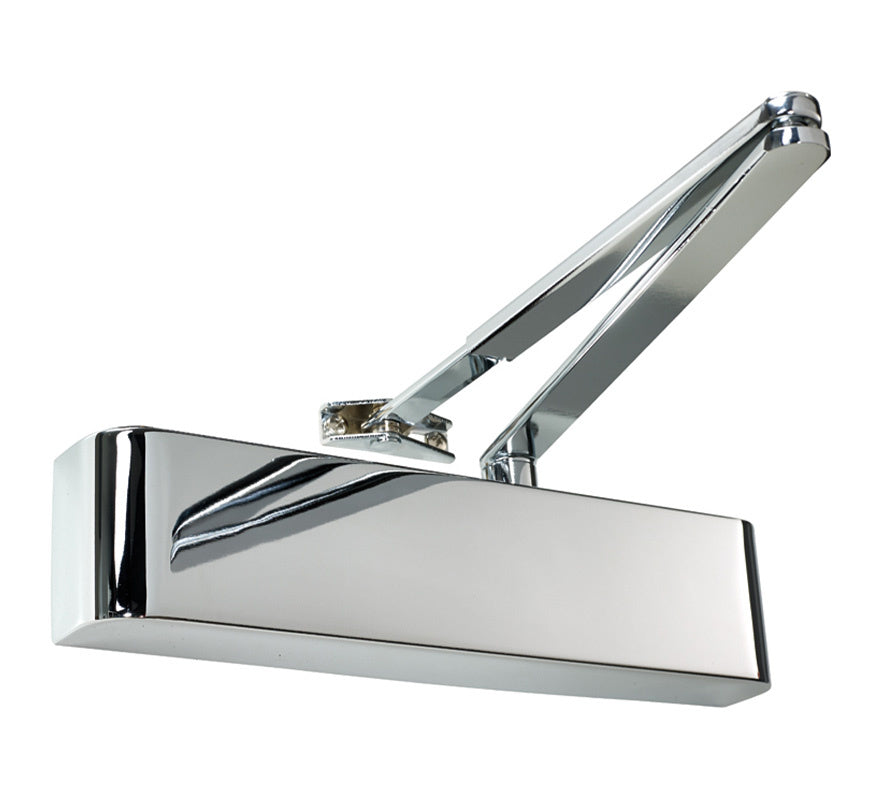

The Rutland TS.5204 (TS.5204BC.SRFB.PNPPNP) is a variable-power, surface-mounted scissor arm overhead door closer in a polished nickel plate finish. This combined unit comes with the closer, flat bar armset, semi-radius cover, parallel arm bracket and back check.
The power is adjustable by spring from EN2 to EN4. Its low opening force helps meet BS 8300 and UK Building Regulations requirements. It can be fitted in the standard, parallel arm or transom position and suits FD30 to FD120 timber fire doors up to 1100mm wide and 80kg.
Key features
- Power adjustable by spring, EN2–4
- Back check as standard
- Low opening force: helps with BS 8300 and UK Building Regulations compliance
- Universal fitting: standard, parallel arm or transom position
- Certifire approved (CF 6018), CE and UKCA marked
- Tested to BS EN 1154 and BS EN 1634-1
Technical specifications
- Product code: TS.5204BC.SRFB.PNPPNP
- Finish: polished nickel plate
- Power size: EN2–4 (by spring)
- Maximum door width: 1100mm (pull side 360–1100mm; push side 485–985mm)
- BS 8300 door width: 920mm (pull side, Fig. 1); 887mm (push side parallel arm, Fig. 66)
- Maximum door weight: 80kg
- Opening angle: 180° pull side; 105° push side parallel arm
- Back check: yes; delayed action: no (available on TS.5204DABC models)
- Fire doors: FD30 to FD120 timber doors
- Dimensions (including cover): W 258 x H 68 x D 45mm
- Certification: Certifire CF 6018; CE 1812
What's in the box
- TS.5204 closer
- Flat bar armset
- Semi-radius cover
- Parallel arm (PA) bracket
