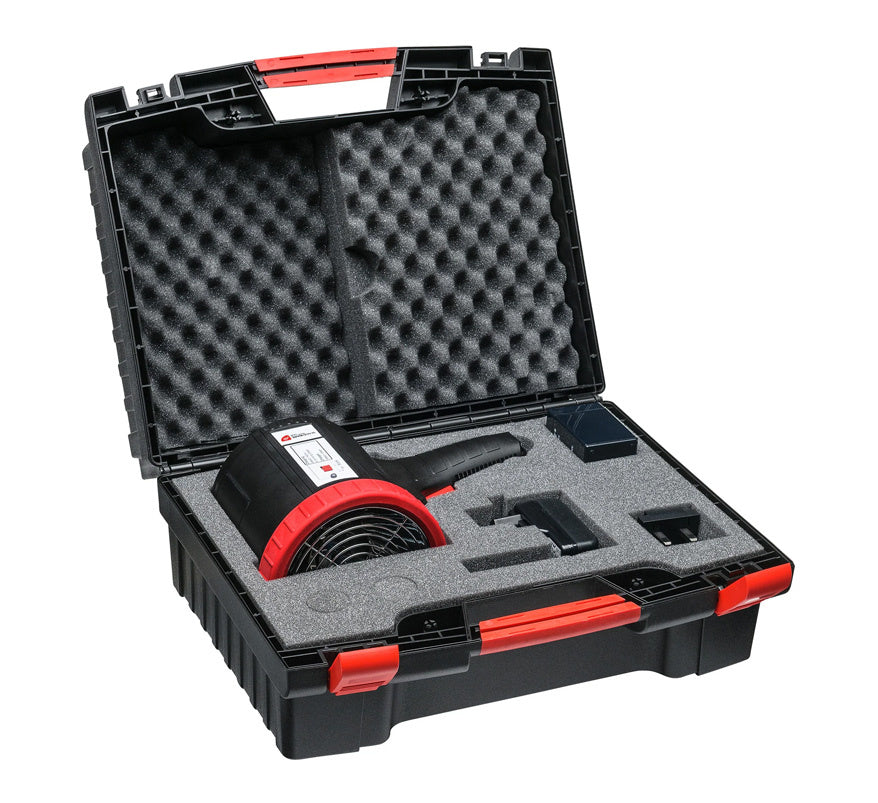

SENSE-WARE Universal UV/IR Flame Detector Test Lamp (TC-229/4P)

The SENSE-WARE TC-229/4P is a universal hand-held test lamp (SENSE-WARE T-229/4P) for functional testing of UV, IR and UV/IR flame detectors in safe (non-hazardous) areas. It emits energy in the 185-235 nm UV and 4.4 µm IR ranges used by these detectors, and a selectable pulse mode simulates the flicker of a real flame so that IR and UV/IR detectors with flicker-frequency analysis go into alarm after their normal alarm delay.

Key features

• Tests UV-only, single-frequency IR and combined UV/IR flame detectors
• Continuous mode, plus a pulse mode of approx. 2 Hz selected with a switch on the side of the lamp
• Powerful 12 V DC / 100 W lamp powered by a rechargeable sealed lead-acid battery
• Universal mains charger with plugs for UK, EU, US and AU
• Polypropylene carrying case with polyurethane inlay
• Not suitable for dual IR (IR/IR) or triple IR (IR3) flame detectors
• For use in safe areas only

Technical specifications

• Test range, UV detectors: up to 8 m in continuous mode, up to 4 m in pulse mode
• Test range, IR and UV/IR detectors: up to 4 m
• Lamp: 12 V DC / 100 W
• Battery: sealed lead-acid, 12 V DC / 2.7 Ah (type BATT4P, 103 x 70 x 46 mm)
• Operating time: 10-15 minutes of continuous use under optimal conditions
• Charger: 100-240 V AC, 1600 mA switching
• Housing: PC/ABS, IP30 / NEMA 1
• Operating temperature: +4 to +40 °C
• Shipping weight including carrying case: 5.0 kg
