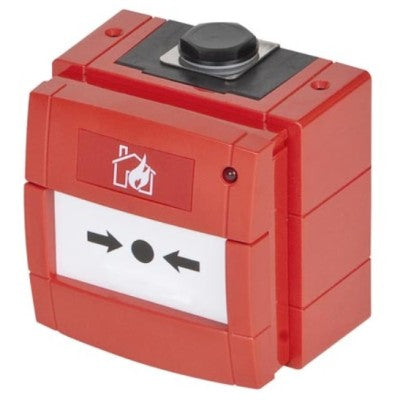

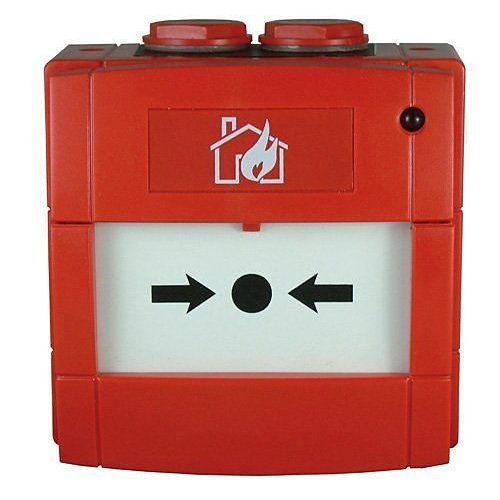

The W5A-RP01SG-K013-01 is an addressable waterproof manual call point, sealed to IP67, that provides a manual alarm interface to Morley-IAS addressable fire alarm control panels using the System Sensor protocol where extra protection against the environment is needed.
It is a surface-mounted unit, and its enclosure accepts single or dual cable entry and comes with an earth continuity link plate. This version has no built-in isolator (old part number WCP5A-RP01SG-01); the W5A-RP02SG-K013-01 is the version with an isolator.
Key features
- Sealed to IP67 for outdoor and wet or dirty locations
- 'Plug & Play' installation concept
- Fully approved to EN 54-11
- Backward compatible as a replacement for previous products
- Integral alarm/communication LED
- Anti-tamper facility
- Optional cover available for two-action operation
Technical specifications
- Type: addressable, surface mounting, no isolator
- Ingress protection: IP67
- Dimensions (H x W x D): 93 x 97.5 x 65.5 mm
- Weight: 270 g
- Operating temperature: -30°C to +70°C
- Colour: RAL 3001 (red)
- Standard: EN 54-11
