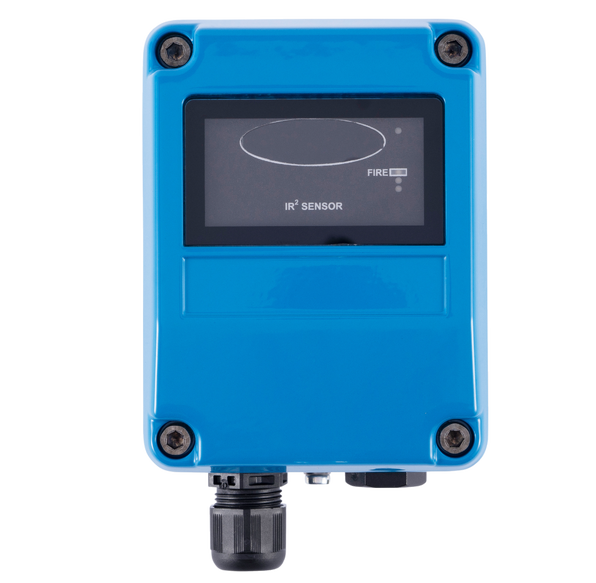

Talentum Flame Detector IR2 (16581-04)
£945.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Dual IR sensing for high immunity to false alarms, including flickering sunlight
- Detects almost all flames, from hydrocarbon fires through to invisible hydrogen fires
- Works even if the window is contaminated by oil, dust, water vapour or ice
- Selectable sensitivity and response speed
- Programmable relay outputs - normally open or normally closed, latching or non-latching
- Built-in automatic and manual test
Product details
A Talentum 16000 series IR2 flame detector in the NF-approved version. It responds to the flickering, low-frequency (1-15 Hz) infrared radiation given off by flames, using two IR sensors at different wavelengths to tell real fires from other sources of radiation.
Key features
- Dual IR sensing for high immunity to false alarms, including flickering sunlight
- Detects almost all flames, from hydrocarbon fires through to invisible hydrogen fires
- Works even if the window is contaminated by oil, dust, water vapour or ice
- Selectable sensitivity and response speed
- Programmable relay outputs - normally open or normally closed, latching or non-latching
- Built-in automatic and manual test
- NF-approved variant of the standard IR2 (16581)
Specification
| Product code | 16581-04 |
|---|---|
| Brand | Talentum |
| Detector type | IR2 (dual infrared) flame detector |
| Housing | Die-cast zinc alloy |
| Dimensions | 142 (h) x 108 (w) x 79 (d) mm |
| Cable entries | 2 x 20 mm |
| Supply voltage | 14 to 30 Vdc |
| Quiescent current | 3 mA to 8 mA |
| Alarm current | 9 mA to 28 mA |
| Operating temperature | -10 to +55 °C |
| Relative humidity | 95% non-condensing |
| Range (Class 1 / Class 3) | 25 m / 12 m |
| Field of view | 90° minimum cone |
| Operating wavelength | IR 1.0 to 2.7 micrometres |
| Approvals | NF |
Datasheets & documents
No datasheet is online for this product yet. Ask us and we will email it to you.
