| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 1 | 2 to 3 working days |
TDSi 5002-3012 ACU Multi Expert-IP 2 Door Controller
£2,086.05
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- The convenience of straightforward connection to an IT Network
- A range of expansion and integration options for maximum flexibility
- Capacity up to 48,000 cards - ideal for high volume applications
- Stand-by battery facility allows the system to continue operating in the event of a power failure
- Systems can be controlled without the need for PC communications
- Can be connected to IT Network
Frequently bought together
TDSi
TDSi 5002-3042 Door Control Panel for 2 Readers with Power Supply Unit
Sale price£1,310.75
In stock
TDSi
TDSi 5002-3092 4 Reader Door Control Panel with Power Supply Unit and TCP-IP
Sale price£2,011.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

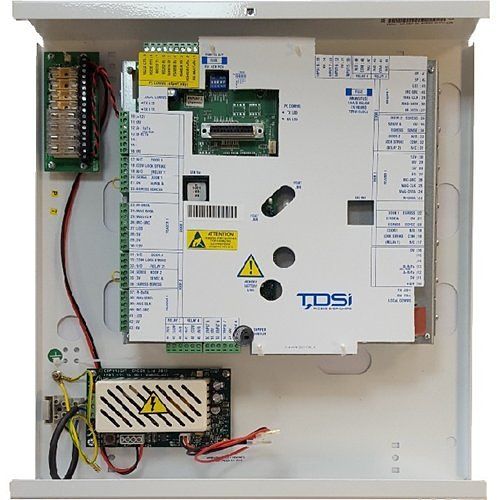

This master 2 door controller is supplied with full TCP/IP connectivity as well as a power supply and RS-485 connectivity. Housed in a robust metal enclosure, EXpert² also has space available for optional Expander slave or I/O boards.
Main Features
- The convenience of straightforward connection to an IT Network
- A range of expansion and integration options for maximum flexibility
- Capacity up to 48,000 cards - ideal for high volume applications
- Stand-by battery facility allows the system to continue operating in the event of a power failure
- Systems can be controlled without the need for PC communications
- Can be connected to IT Network
- A flexible and scalable access controller
- Available with TCP/IP port to allow direct connection to modern network infrastructures
- Master/ slave configurations allow great flexibility in system design and control
- Optional lift control module capable of controlling up to 20 floors
Specifications
| Application/Usage | Door |
|---|---|
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Communication Technology | IP; RS-232; RS-485; TCP/IP |
| Compatibility | 16 output module; EXgarde PC/GARDIS Software; EXpert² slave units; Optional 32 input |
| Depth | 90.0mm |
| Ethernet | Yes |
| Height | 390.0mm |
| Identification Method | Contactless Card (RFID/Proximity) |
| Input Voltage | 240V AC |
| Limited Warranty | 2-Year |
| Mount Type | Door Mount |
| Number of Doors | 2 |
| Number of Relays Supported | 4 |
| Number of Users | 47000 |
| Product Line | EXpert 2 IP |
| Product Type | Door Access Control System |
| Weight | 5.70kg |
| Width | 410.0mm |
| Wiegand | Yes |
| Battery Voltage | 10V |
| Manufacturer | TDSI |
| Number of Events Log | 1000 |
| RoHS Compliant | Exempt |
| User Code Storage | 47000 |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
TDSi 5002-3012 ACU Multi Expert-IP 2 Door Controller Product datasheet · 5002-3012 · PDF Open datasheet
