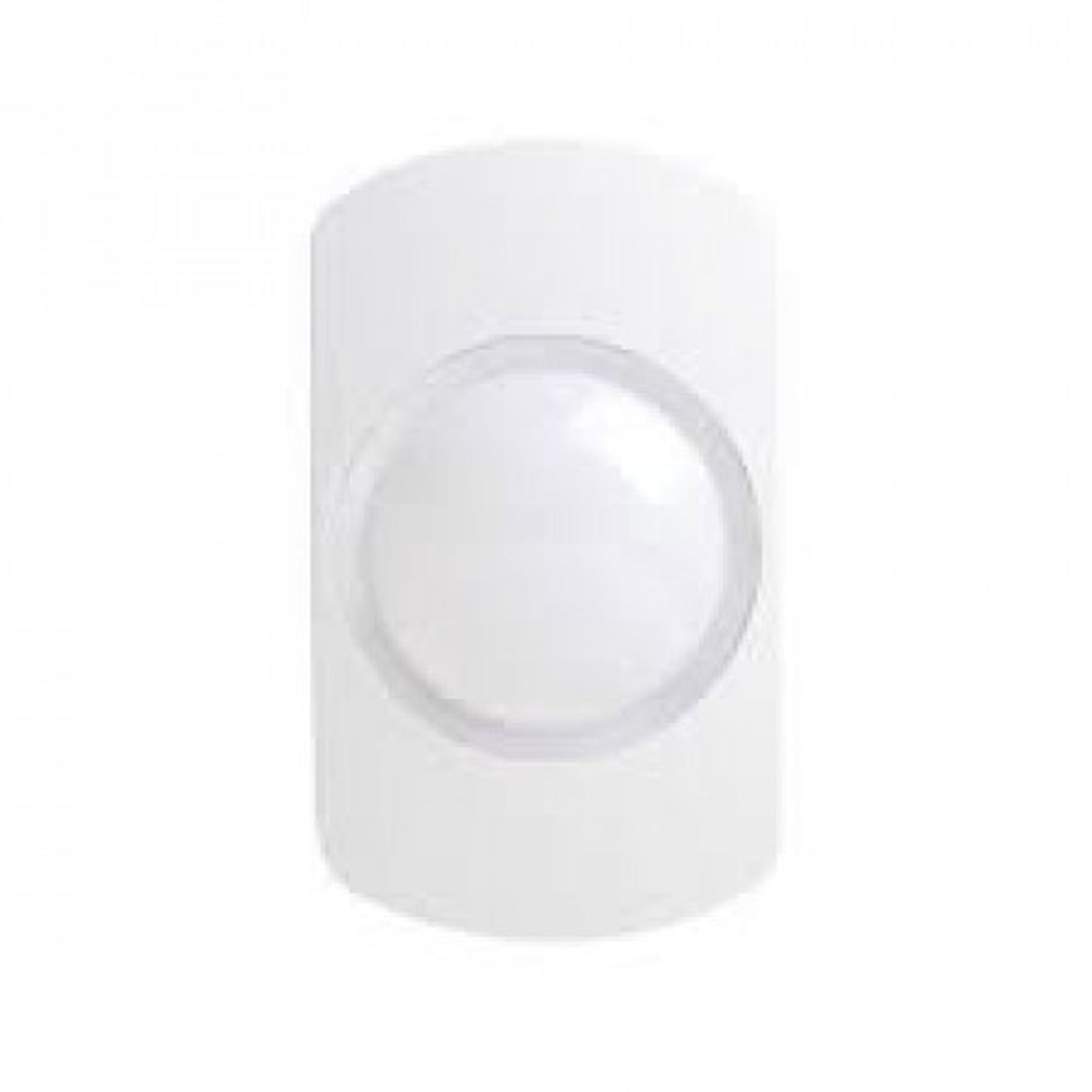

The Texecom Capture D20-W (GDC-0001) is a Grade 2 wireless dual technology (PIR plus microwave) motion detector for wall mounting, using Texecom's Ricochet® mesh wireless technology for use with Texecom wireless intruder alarm systems. It combines a quad element pyro with K-band microwave and shares the same low-profile form factor as the wired Capture detectors.
Key features
- 20m / 85° coverage (manufacturer's leaflet); 16m / 80° in the default EN 50131-2-4 compliant mode
- Quad element pyro plus K-band microwave with adjustable microwave range
- Dual tech, PetWise and CloakWise modes
- EN 50131-2-4 and PD 6662:2017 Grade 2, Environmental Class II
- Ricochet® mesh wireless with automatic wireless set-up
- Tri-colour LED; front-loaded, fully sealed electronics
- Lifetime warranty (battery 24 months)
Technical specifications
- Detection: quad PIR + K-band microwave
- Maximum current: 38mA; quiescent current: 22µA
- Frequency: 868MHz (868.2 to 868.4MHz), max RF power 10mW, listen-before-talk receiver
- Operating voltage: 3V; battery type CR123 (supplied battery capacity 1250mAh)
- Low battery signal: 2.85V; detector runs for at least 30 days after low battery is signalled
- Mounting height: 1.5m to 3m (wall, corner or flat surface; internal use only)
- Operating temperature: -10°C to +55°C; humidity 0 to 95% non-condensing
- Dimensions: 65mm wide x 112mm high x 43mm deep
- Colour: white
- Weight (with fascia, insert and battery): 133g
