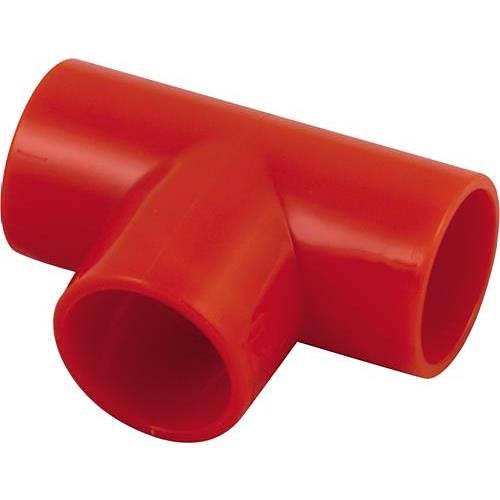

VESDA PIP-008 90° T-Piece Connector Pack with 10 Units

The VESDA PIP-008 is a pack of 10 red 25 mm equal tees (90° T-pieces). It is part of the Xtralis VESDA pipes and fittings range for aspirating smoke detection (ASD) pipe networks. The range is made from ABS, uses a metric 25 mm outside diameter pipe standard, and is tested and certified to EN 54-20 and EN 61386-1. Tees are used to branch a sampling pipe or to attach capillaries and drop pipes to the main air sampling pipe.

Key features

• Equal tee for branching the sampling pipe
• Red, to identify fire service pipework
• Made from ABS for strength, impact resistance and chemical resistance
• Joins with ABS solvent cement (PIP-012) for fast, reliable connections
• Fully matched to VESDA ABS pipe for optimal ASD system performance
• Suitable for use with low-pressure ASD systems

Technical specifications

• Part number: PIP-008
• Size: 25 mm equal tee
• Pack quantity: 10
• Colour: red
• Pipe system: 25 mm OD, 21 mm ID ABS
• Standards: tested and certified to EN 54-20 and EN 61386-1
• ABS impact strength and toughness maintained from -40°C to 80°C
