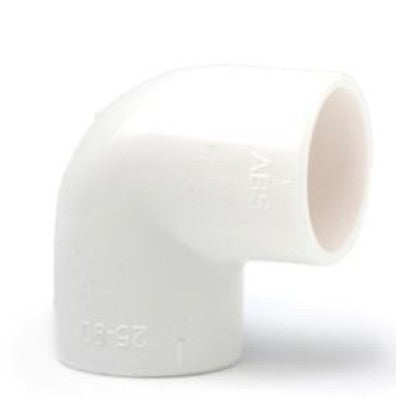

VESDA PIP-017-W White 90° Elbow

The Xtralis VESDA PIP-017-W is a white 25 mm 90° ABS elbow from the VESDA Pipes and Fittings range, supplied in a pack of 10. It is used to build the sampling pipe network of a VESDA aspirating smoke detection (ASD) system, and the 25 mm range is designed to work with all brands of low-pressure ASD systems.

Key features

• Changes the direction of the sampling pipe by 90° and can be used to divert pipework around obstructions
• Where space allows, Xtralis prefers wider-radius bends; elbows are an accepted alternative
• Moulded from ABS (acrylonitrile butadiene styrene) under a quality system approved to BS EN ISO 9001
• VESDA pipes and fittings are tested and certified to EN 54-20 and EN 61386-1
• Joined with ABS solvent cement for a fast, one-step, leak-free joint
• Lightweight, impact resistant and resistant to a wide range of acids, alkalis and other aggressive chemicals

Technical specifications

• Part number: PIP-017-W
• Colour: White (red is the standard fire-service colour; white and grey suit aesthetic requirements)
• Fitting: 90° elbow for 25 mm pipe
• Material: ABS
• Pipe system: 25 mm outside diameter (metric), for use with 21 mm ID sampling pipe
• Impact strength and toughness maintained from -40 °C to 80 °C (pipework must allow for thermal expansion)
• Vicat softening temperature: 95 °C; flame rating: HB (UL 94)
• Pack quantity: 10
