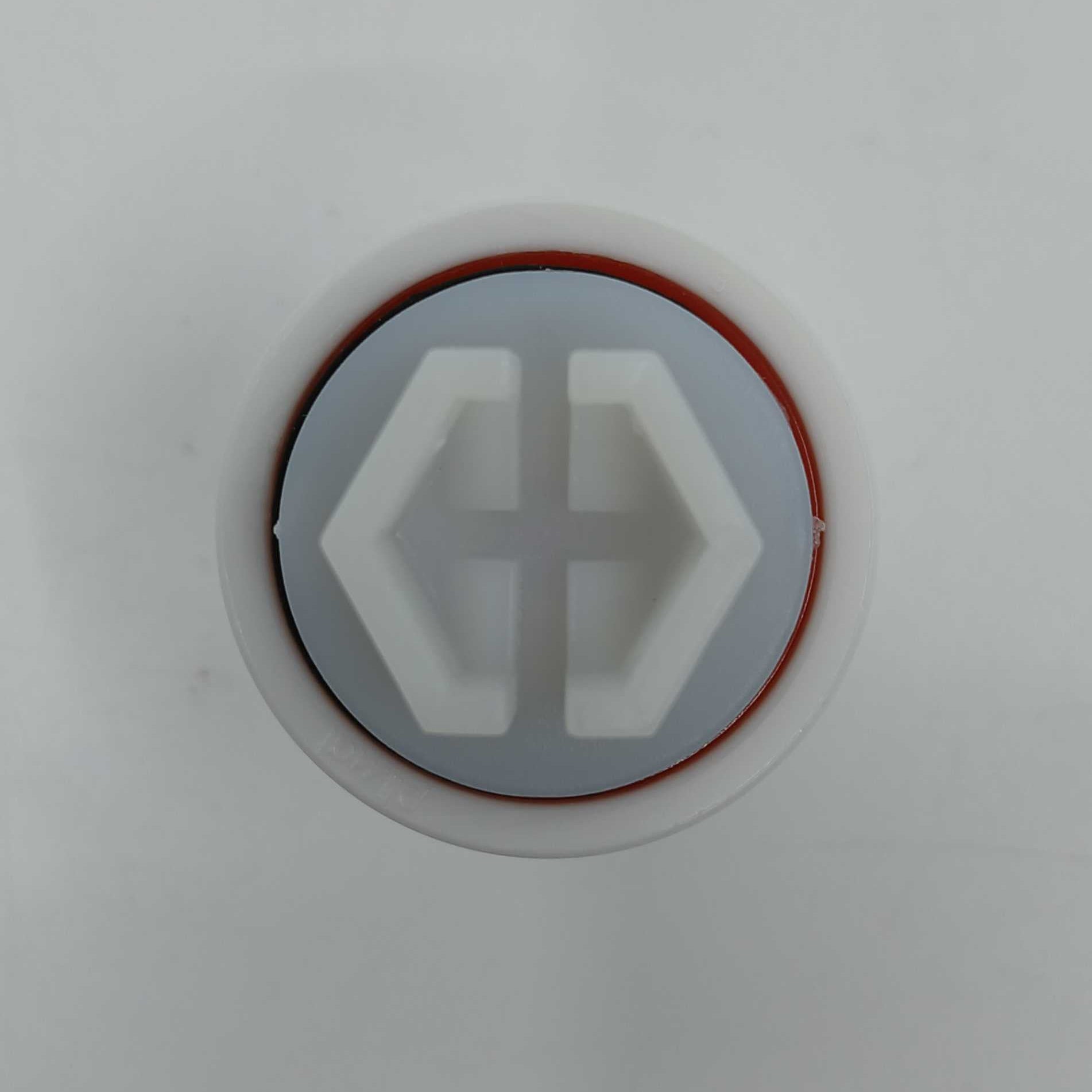

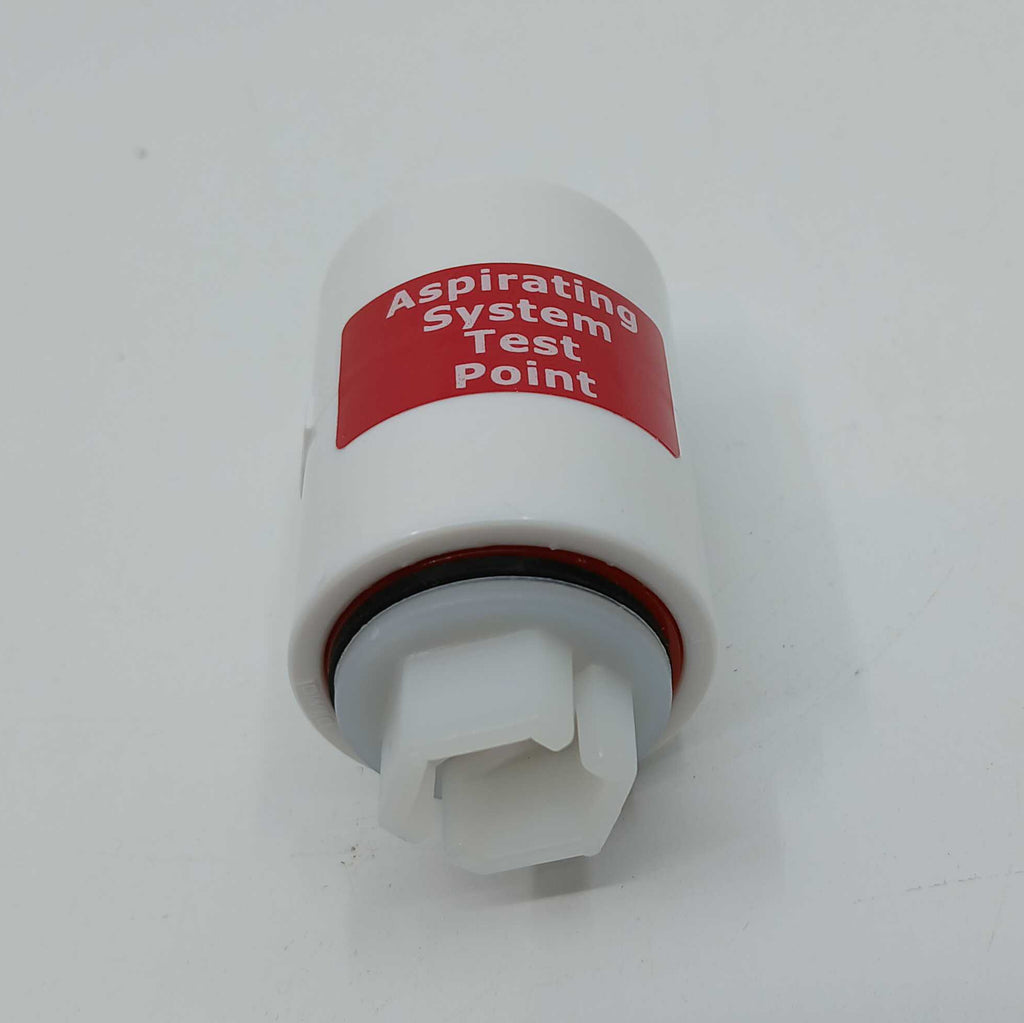

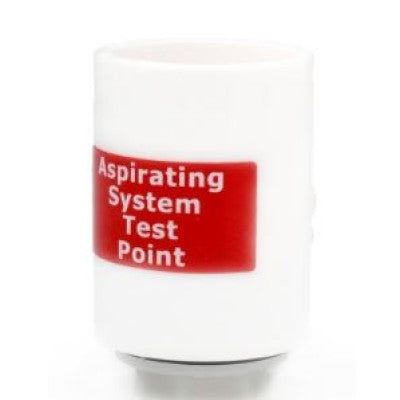

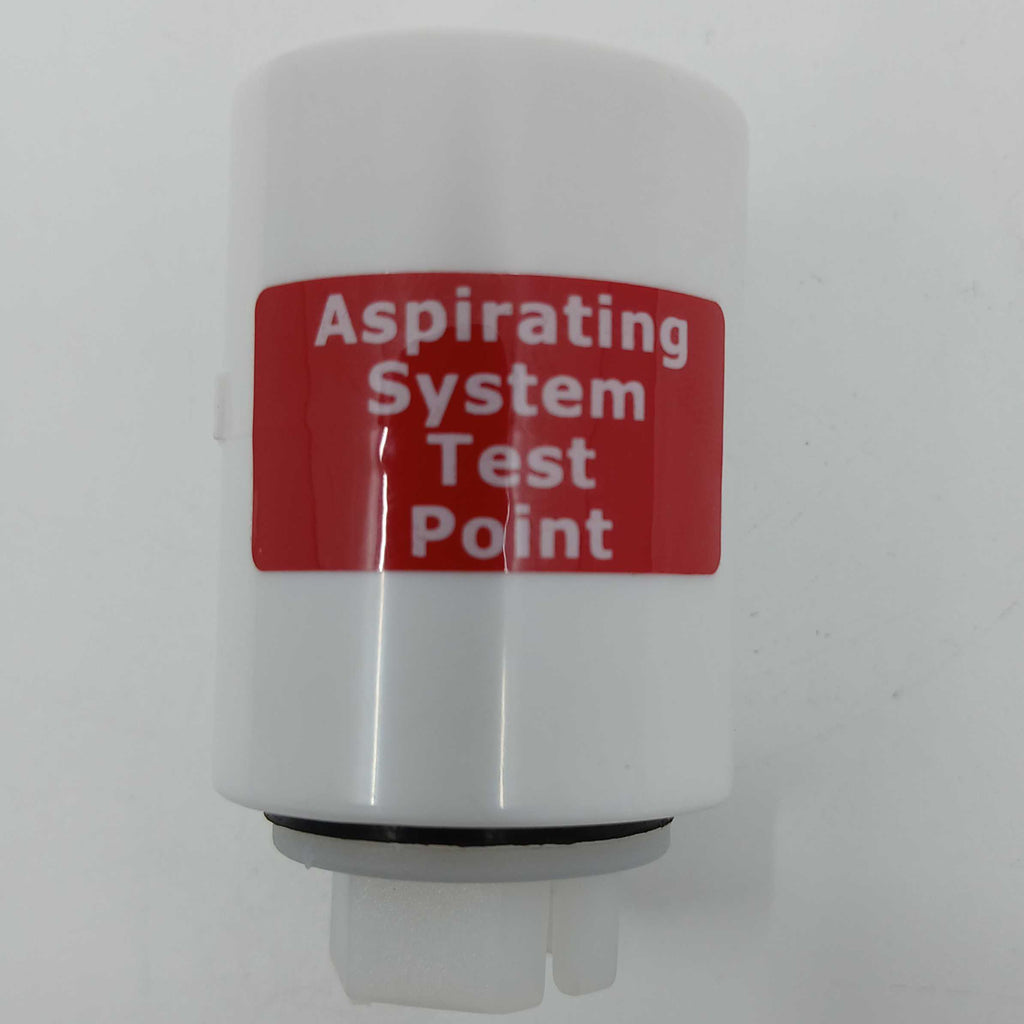

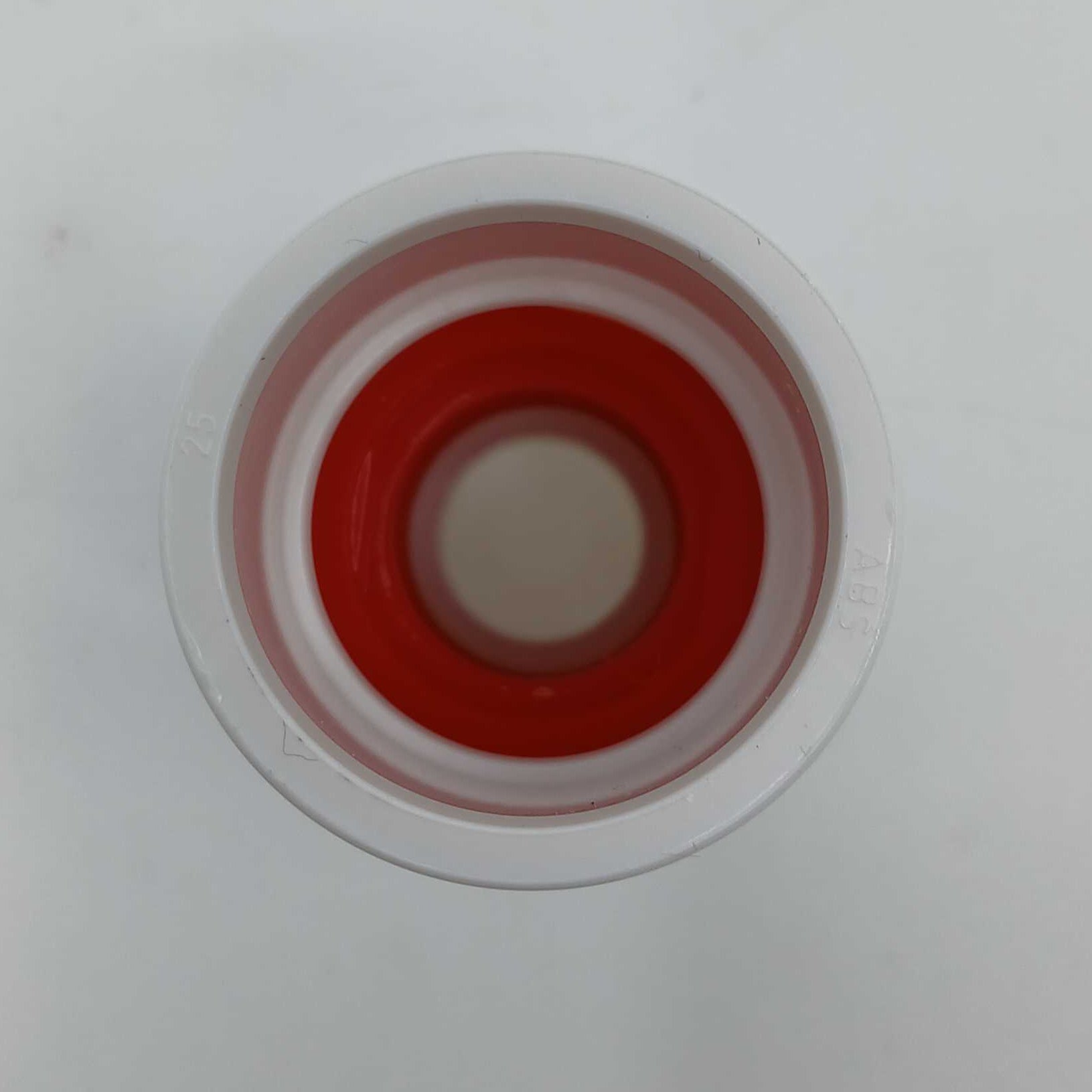

VESDA PIP-018-W White System Test Point Pack of 10

The Xtralis VESDA PIP-018-W is a white 25 mm air sampling test point from the VESDA Pipes and Fittings range, supplied in a pack of 10. It is used to build the sampling pipe network of a VESDA aspirating smoke detection (ASD) system, and the 25 mm range is designed to work with all brands of low-pressure ASD systems.

Key features

• Provides a point for periodic smoke testing of the VESDA system, particularly useful in hard-to-reach areas
• Fits the standard 25 mm VESDA sampling pipe
• Moulded from ABS (acrylonitrile butadiene styrene) under a quality system approved to BS EN ISO 9001
• VESDA pipes and fittings are tested and certified to EN 54-20 and EN 61386-1
• Joined with ABS solvent cement for a fast, one-step, leak-free joint
• Lightweight, impact resistant and resistant to a wide range of acids, alkalis and other aggressive chemicals

Technical specifications

• Part number: PIP-018-W
• Colour: White (red is the standard fire-service colour; white and grey suit aesthetic requirements)
• Fitting: air sampling test point for 25 mm pipe
• Material: ABS
• Pipe system: 25 mm outside diameter (metric), for use with 21 mm ID sampling pipe
• Impact strength and toughness maintained from -40 °C to 80 °C (pipework must allow for thermal expansion)
• Vicat softening temperature: 95 °C; flame rating: HB (UL 94)

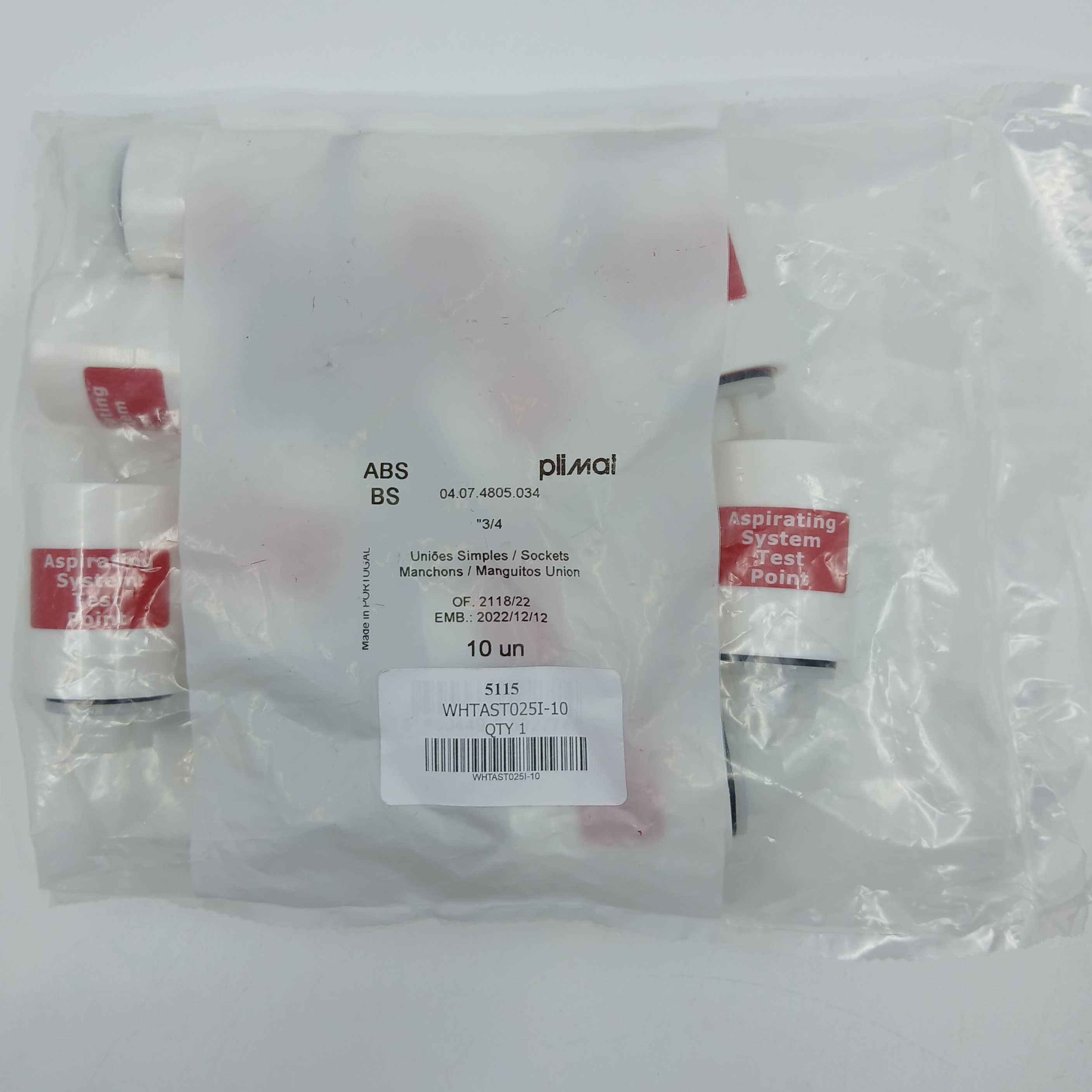

• Pack quantity: 10
