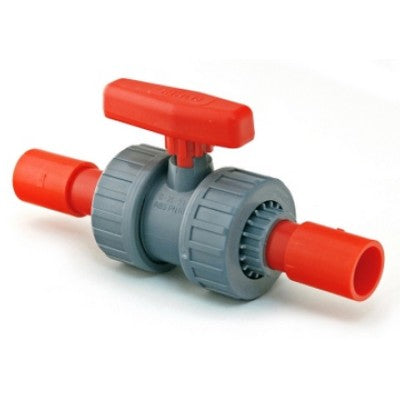

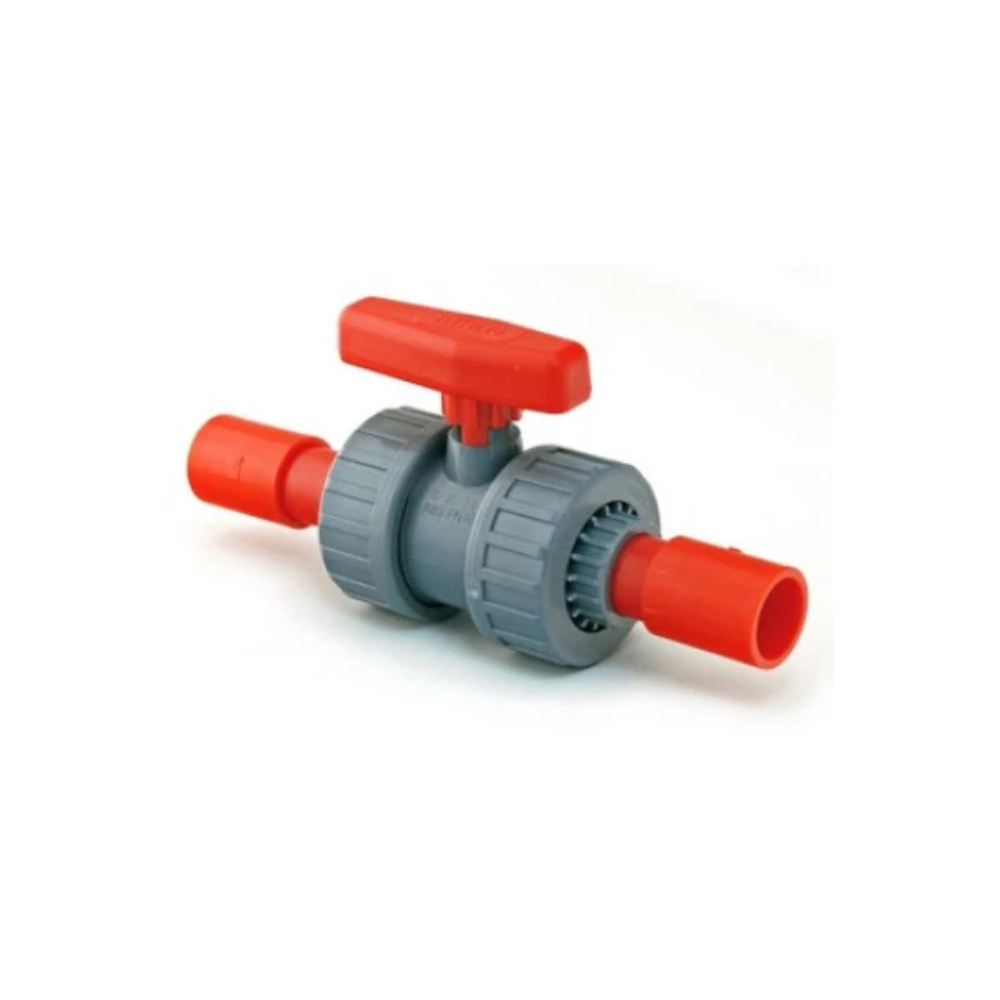

The VESDA PIP-023 is a 2-way 25 mm ball valve for VESDA ASD sampling pipework. It is part of the Xtralis VESDA pipes and fittings range for aspirating smoke detection (ASD) pipe networks. The range is made from ABS, uses a metric 25 mm outside diameter pipe standard, and is tested and certified to EN 54-20 and EN 61386-1. Ball valves are used to direct or divert airflow within the pipe network. Their union ends allow easy removal for refurbishment, repair or replacement without disturbing the rest of the pipework.
Key features
- 2-way ball valve for directing or diverting airflow
- Union ends for easy removal and replacement
- Fully matched to VESDA ABS pipe for optimal ASD system performance
- Suitable for use with low-pressure ASD systems
Technical specifications
- Part number: PIP-023
- Type: 2-way ball valve
- Size: 25 mm
- Pipe system: 25 mm OD, 21 mm ID ABS
- Standards: tested and certified to EN 54-20 and EN 61386-1
