VESDA VPS-220-E5 Power Supply (FM Approved) - Style E
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
- EN 54-4 certified power supply rated for 0.5 A continuous at 24 V DC while charging batteries
- Space for 7Ah, 12Ah or 14Ah batteries (batteries not included)
- Temperature-compensated charging to maximise battery life
- Cable entry knockouts line up with VESDA-E detectors
- Front cover LEDs for OK and fault indication, plus an internal status LED
- Relay outputs for connection to the detector’s general-purpose input for fault monitoring
Frequently bought together
Product details

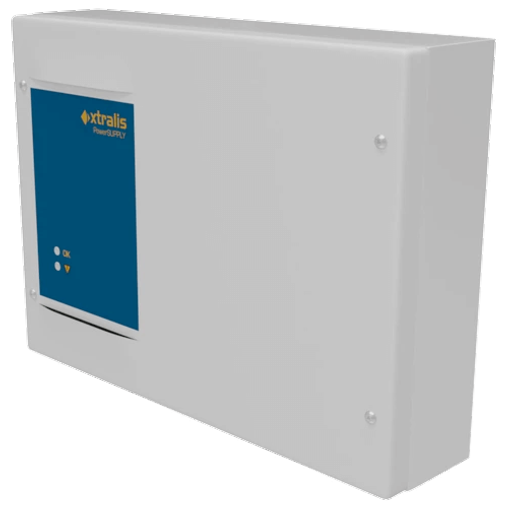

The Xtralis VESDA VPS-220-E5 is a 24 V DC, 0.5 A power supply unit designed to power VESDA aspirating smoke detectors. Its larger enclosure has space for standby batteries of up to 14Ah, and it shares the same footprint as VESDA-E VEP, VES and VEU detectors so it can be mounted neatly alongside them.
24 Volt 0.5 amp Power Supply Unit. Larger enclosure with space for up to 14Ah batteries. Xtralis Power Supply Units are uniquely designed to complement the style and appearance of Xtralis’ aspirating smoke detectors (ASDs) and are technically matched to provide sufficient current and battery charging capacity to meet the requirements of EN 54-4. The Style E variants are VdS certified and CE marked to EN 54-4, so are particularly suitable for use in territories where these approvals are required.
Key features
- EN 54-4 certified power supply rated for 0.5 A continuous at 24 V DC while charging batteries
- Space for 7Ah, 12Ah or 14Ah batteries (batteries not included)
- Temperature-compensated charging to maximise battery life
- Cable entry knockouts line up with VESDA-E detectors
- Front cover LEDs for OK and fault indication, plus an internal status LED
- Relay outputs for connection to the detector’s general-purpose input for fault monitoring
- Can run on batteries alone, useful during commissioning before mains power is available
- DIP switch configuration (battery monitoring, charge current, mains-fail simulation)
Frequently asked questions
Are batteries included with the VPS-220-E5?
No, batteries are not included. The enclosure accepts 7Ah, 12Ah or 14Ah battery arrangements.
Which VESDA detectors can it power?
According to Xtralis, it can power and provide 24 hours standby plus 0.5 hours in alarm for the VESDA VLF-500, VESDA-E VEP and VESDA-E VES detectors, and VESDA-E VEU detectors up to fan speed 5.
Can it power more than 0.5 A?
A non-certified setting allows loads of up to 1 A while recharging batteries of up to 12Ah, but this is outside the EN 54-4 certified configuration.
