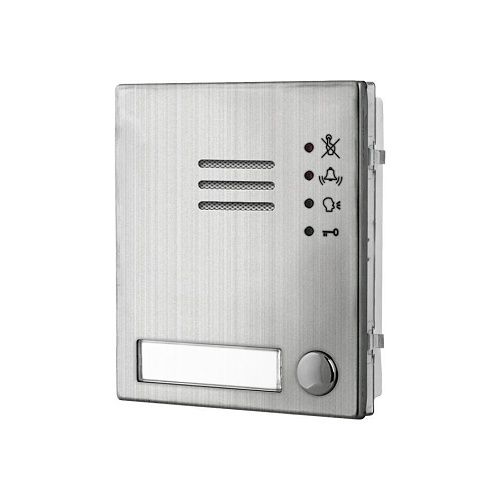

4000 Series speaker module with a built-in proximity reader (4204X) for the VX2200 digital system. The speaker module is available with either 0, 1 or 2 buttons, however additional buttons can be added using a combination of the 4042, 4043, 4044 and 4045 IDC button expansion modules. The name plate windows are illuminated blue and the speaker also features 4 call status LED's alerting the user when the system is busy, a call is in progress, when to speak and when the door is open. The built-in proximity is located behind the nameplate window for button 1 and is capable of storing up to 60 user fobs / cards, however, this can be increased up to 1000 using the 2X00PC software. The modules contain a speaker and fly lead with microphone which is easily fitted into a 4000 series front frame. Modules attach to the 4000 Series housing frames using a simple but strong clip-in system which can be secured in place using an anti-tamper clip fixing. Speech levels can be adjusted using separate controls for the speaker, microphone and balance. All the modules above are available in a matt finish 316 marine grade stainless steel (suffix /M), mirror stainless steel finish (suffix /S) or gun metal grey (suffix /BL)
Main Features
Call reassurance tones and DDA compliant call progress LED's
Blue back-lit name plate windows
Compatible with the full range of 4000 series surface and flush back boxes
Multiple call button configurations using additional 4000 series IDC button expansion modules
Speech volume adjustments via the mic, speaker and balance control POTs
Simple and strong clip-in module system with anti-tamper lock fixings
Built-in proximity access reader
Store up to 60 user fobs / cards (expandable up to 1000 users with 2X00PC software)
Specifications
Compatibility
4000 series surface and flush back boxes and front support frames; VX2200 digital system
