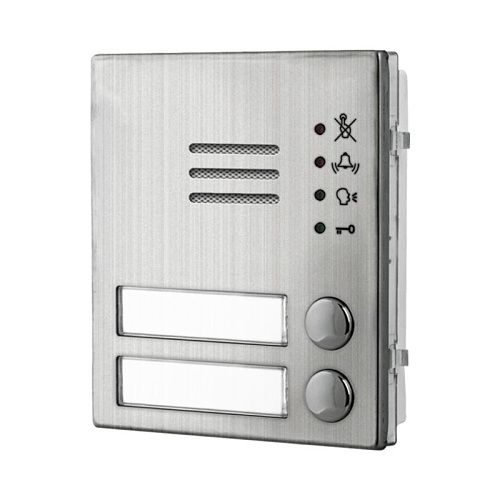

Videx 4204X-2/M 4000 Series 2-Way 2-Button Speaker Module for VX2200 Digital System with Integrated Proximity Access Reader, IP65, IK07, Marine Grade Stainless Steel, (Replaces 4203/2, 4204X-2)
SKU: 4204X-2/MBrand: Videx
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 1 | 2 to 3 working days |
Videx 4204X-2/M 4000 Series 2-Way 2-Button Speaker Module for VX2200 Digital System with Integrated Proximity Access Reader, IP65, IK07, Marine Grade Stainless Steel, (Replaces 4203/2, 4204X-2)
£258.65
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Store up to 60 user fobs / cards (expandable up to 1000 users with 2X00PC software)
- Blue backlit name plate windows
- Call reassurance tones and DDA compliant call progress LED's
- Multiple call button configurations using additional 4000 series IDC button expansion modules
- 4000 Series speaker and fly lead microphone (mic easily fits within a 4000 series frame)
- Speech volume adjustments via the mic, speaker and balance control POTs
Frequently bought together
Videx
Videx 437 Panel Speaker Unit 8-12V DC Amplifier
Sale price£39.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Videx
Videx 4384X-1/M 1-Button Amplifier Camera Module, Matt Finish, (Replaces 4384X-1)
Sale price£516.35
In stock
Product details
The name plate windows are illuminated blue and the speaker also features 4 call status LED's alerting the user when the system is busy, a call is in progress, when to speak and when the door is open. The modules contain a speaker and fly lead with microphone which is easily fitted into a 4000 series front frame. Speech levels can be adjusted using separate controls for the speaker, microphone and balance.
Main Features
- Store up to 60 user fobs / cards (expandable up to 1000 users with 2X00PC software)
- Blue backlit name plate windows
- Call reassurance tones and DDA compliant call progress LED's
- Multiple call button configurations using additional 4000 series IDC button expansion modules
- 4000 Series speaker and fly lead microphone (mic easily fits within a 4000 series frame)
- Speech volume adjustments via the mic, speaker and balance control POTs
- Simple and strong clip-in module system with anti-tamper lock fixings
- Built-in proximity access reader
- Store up to 60 user fobs / cards (expandable up to 1000 users with 2X00PC software)
Specifications
| Compatibility | 2X00PC software; 4000 series surface and flush back boxes and front support frames; 521B and 2291 series cabinets |
|---|---|
| Ingress Protection Rating | IP65 |
| Input Voltage | 12V DC |
| Limited Warranty | 2-Year |
| Security Grade | Grade 1 |
| Width | 103.00mm |
| Colour | Blue |
| RoHS Compliant | Out of Scope |
| WEEE Compliant | Out of Scope |
Downloads
Product datasheet
Videx 4204X-2/M 4000 Series 2-Way 2-Button Speaker Module for VX2200 Digital System with Integrated Proximity Access Reader, IP65, IK07, Marine Grade Stainless Steel, (Replaces 4203/2, 4204X-2) Product datasheet · 4204X-2/M · PDF Open datasheet
