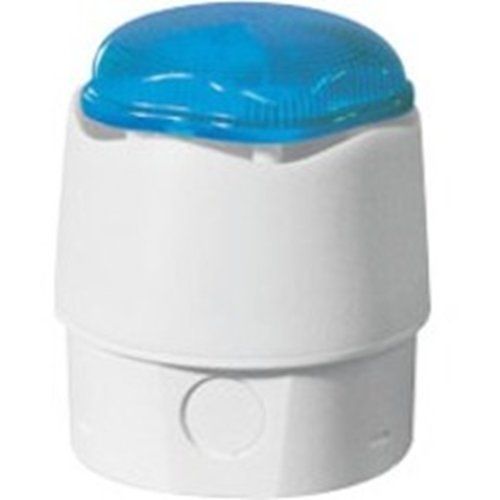

Vimpex 958CHX1801 Banshee Excel Lite CHX Sounder Beacon, Deep Base, White
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 7 | 2 to 3 working days |
- Available with either Xenon or LED Beacon with a red or white body
- Choice of lens colours (CHX: Red, Clear, Amber,Blue, Green / CHL: Red, Clear)
- Sounder has 32 user-selectable tones - industry standard compatible
- Very low current consumption
- EN 54-3 tested and fully approved in accordance with CPR
- VdS approved
Frequently bought together
Product details
The Banshee Excel Lite combines the aesthetics and performance of the Excel Sounder with either a very bright and efficient Xenon Beacon (CHX model) or a low-current LED Beacon (CHL model).
The sounder is fitted with a professional capsule driven horn and comes with 32 user-selectable tones incorporating low frequencies, high frequencies, European, American and Australian norms and all industry-standard frequency patterns.
Manufactured in flame retardant polymer, the units are available in a choice of base colours and up to 5 different lens colours, making it suitable for a range of fire and security dual notification applications as well as DDA-compliant installations. All models use the push and twist bayonet fitting BansheeMT base.
Tested and approved to EN 54 Part 3, the Banshee Excel Lite™ boasts leading acoustics, aesthetically pleasing design and low power consumption. The units are designed for ease of installation and are complemented by a wide selection of accessories to suit all applications.
- Available with either Xenon or LED Beacon with a red or white body
- Choice of lens colours (CHX: Red, Clear, Amber,Blue, Green / CHL: Red, Clear)
- Sounder has 32 user-selectable tones - industry standard compatible
- Very low current consumption
- EN 54-3 tested and fully approved in accordance with CPR
- VdS approved
- Easy to install with side and rear cable entry
- Robust 'two in two out' 2.5 mm2 terminals
- Choice of three volume levels
- Rated to IP66 or IP45
Specifications
| Application/Usage | Fire; Industrial; Security |
|---|---|
| Bulb/Tube Type | Xenon |
| Durability | Flame Retardant |
| Environmental Certification | CE |
| Environmentally Friendly | Yes |
| Input Voltage | 30V DC |
| Lens Colour | Blue |
| Limited Warranty | 1-Year |
| Product Line | Banshee Excel Lite |
| Product Series | CHX |
| Product Type | Security Alarm |
| Colour | White |
| Light Colour | Blue |
| Manufacturer | Vimpex Ltd |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Vimpex 958CHX1801 Banshee Excel Lite CHX Sounder Beacon, Deep Base, White Product datasheet · 958CHX1801 · PDF Open datasheet
