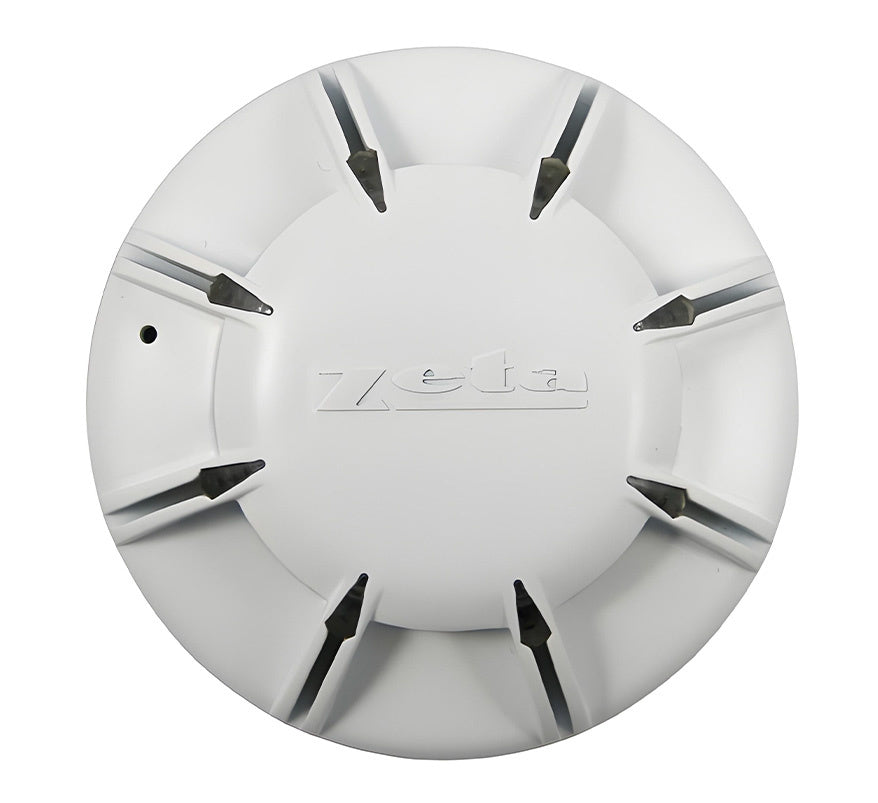

The Zeta Fyreye MKII-AOP is an addressable optical smoke detector for Zeta's Fyreye MKII protocol systems, including the Infinity ID2 panel. It uses a pulsing IR LED and photodiode to detect infra-red light scattered by smoke entering the chamber. It is particularly suited to detecting optically dense smoke from materials such as soft furnishings, PVC, plastics and foam.
Key features
- Designed to meet EN 54 requirements; LPCB approved
- Lockable to base to prevent unauthorised removal
- Remote LED output
- 8 LEDs for improved 360° visibility
- Compatible with all Fyreye MKII bases
- Addressed with DIP switches or hand-held programmer
Technical specifications
- Part number: 80-210
- Detector class: optical smoke, EN 54-7
- Operating voltage: 17 to 28 V DC
- Quiescent current: 500 µA; alarm current 5 mA at 24 V DC
- Alarm condition: 0.09 to 0.11 dB/m
- Coverage: 100 m²
- Operating temperature: -10 to +50°C
- Max humidity: 95% RH non-condensing
- IP rating: IP43
- Start-up time: 10 seconds
- Size with base: 100 x 49 mm
- Remote output: 5 mA at 24 V DC
