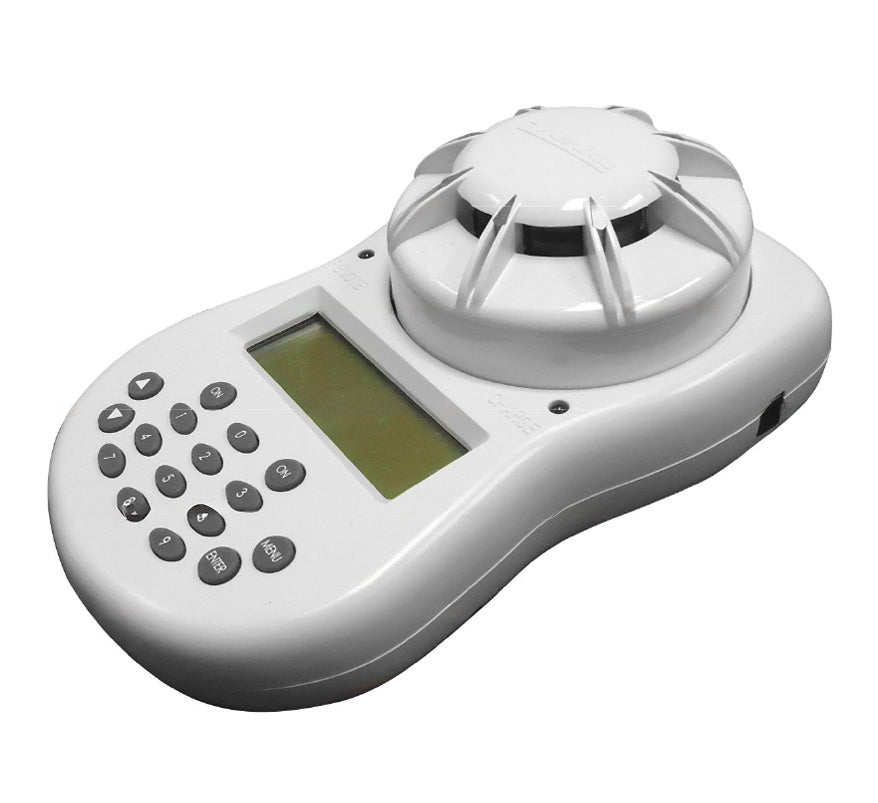

The Zeta MKII-TOOL is a handheld address programming tool for Zeta Fyreye MKII addressable devices. It soft-addresses devices without using their DIL switches and can set a range of operating parameters, helping the commissioning engineer on site. Detectors and the sandwich sounder simply clip onto the tool's base; interfaces, call points and sounders are programmed via a cable from the loop wire output.
Key features
- Soft-addresses Fyreye MKII devices (addresses 001 to 250) without using the device DIL switch
- Sets the addresses a remote LED indicator responds to
- Sets detector type: opto-heat detectors can be reprogrammed as heat or smoke detectors
- Command test: detectors can be tested on the programmer and alarm LEDs checked before installation
- Sets LED flash mode, next calibration date and group address
- Switches ZAxx-MI addressable interfaces between MKII and Standard protocol
- Can also soft-address Fyreye Extra detectors (FEAOE2000, FEAOH2000, FEAHE2000, FEAHHE2000)
- 20 x 4 character LCD with battery state indicator
- Auto-off after two minutes without use; external reset function; optional password control
Technical specifications
- Power supply: 6 x AAA alkaline batteries or external 12V adapter
- Sleep current: 0.8µA
- Standby current: 2.3mA
- Set detector current: 6.8mA
- Display: 20 x 4 character LCD
