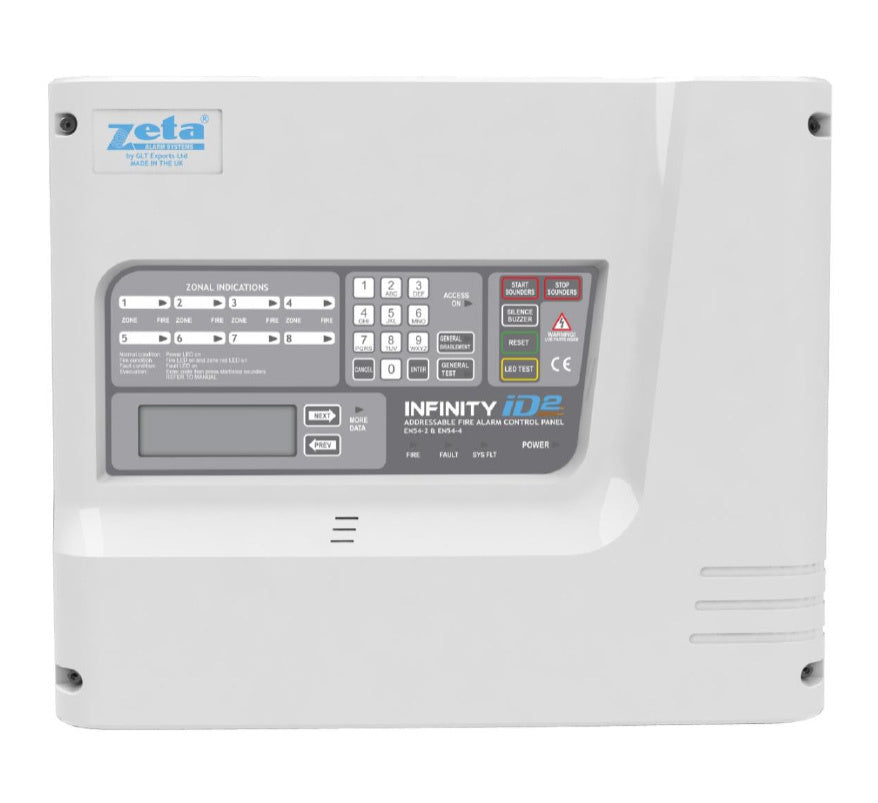

Zeta Infinity ID2 8 Zone Intelligent 2-Wire Fire Alarm Panel (ID2/8)
SKU: ID2/8Brand: Zeta
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Zeta Infinity ID2 8 Zone Intelligent 2-Wire Fire Alarm Panel (ID2/8)
£382.55
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 8 zones; loop or radial wiring (up to 8 radial circuits)
- Each device uniquely identified by the panel
- Designed to meet EN 54-2 and EN 54-4; system meets BS 5839-1 and BS 5839-6
- No end-of-line devices required; all devices on 2-core zone cable
- Detectors available with integrated sounder, so no separate sounder circuits are needed
- Alarm verification to help manage unwanted alarms
Frequently bought together
Zeta
Zeta Infinity ID2 Combined Smoke & Heat Detector (Black) (ID2-BOH)
Sale price£37.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Zeta
Zeta Infinity ID2 Combined Smoke & Heat Detector (ID2-OH)
Sale price£35.40
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Zeta
Zeta Infinity ID2 Combined Smoke & Heat Detector with Sounder (Black) (ID2-BOH/S)
Sale price£55.50
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Zeta
Zeta Infinity ID2 Combined Smoke & Heat Detector with Sounder (ID2-OH/S)
Sale price£53.55
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Zeta
Zeta Infinity ID2 Indoor Manual Call Point c/w Surface Backbox, Bezel and Cover (ID2-MCP)
Sale price£33.15
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
The Zeta Infinity ID2/8 is an 8-zone intelligent 2-wire fire alarm panel. It gives all the benefits of a 2-wire installation (less cable, quicker installation and savings on labour and product) while also identifying each individual device, so the panel reports the exact location of an alarm or fault.
The ID2 uses Zeta's MKII protocol and can run Zeta's addressable detectors, call points, interfaces and sounders. It can be wired as a single loop or as up to 8 radial circuits, which makes it suitable for new installations, as a retrofit for a conventional system using the existing wiring, or as a replacement for an existing 2-wire system.
Key features
- 8 zones; loop or radial wiring (up to 8 radial circuits)
- Each device uniquely identified by the panel
- Designed to meet EN 54-2 and EN 54-4; system meets BS 5839-1 and BS 5839-6
- No end-of-line devices required; all devices on 2-core zone cable
- Detectors available with integrated sounder, so no separate sounder circuits are needed
- Alarm verification to help manage unwanted alarms
- Device count verification and Zone Check facility
- 2048-event history
- Cable break protection (loop mode) and short-circuit protection with isolators
- 20-character zone and device descriptions
- One-man walk test; zone and sounder circuit isolation
- ID2 smartphone app (iOS and Android) to help set device addresses
- Supports a fully functional repeater panel and GSM communicator
Technical specifications
- Model / part no.: ID2/8 (37-663)
- Supply: 230 V AC +10% / -15% at 50/60 Hz
- System voltage: 29 V DC nominal (19-30 V)
- Sounder outputs: loop-powered sounders plus 2 conventional sounder circuits, 28 V nominal, 150 mA
- Fault relay: SELV at 1 A (normally energised)
- Fire relay: SELV at 1 A
- Zones: 8; zone capacity 15 devices per zone
- Maximum loop sounders: 80
- Repeater connection: RS485
- Dimensions: 370 (W) x 311 (H) x 113 (D) mm
- Weight: 2.65 kg
- Kitemark certificate KM 575040; CPR 2797-CPR-670814
See the full Zeta Infinity ID2 range: panels, repeater, kits, detectors and call points.
Datasheet
Zeta Infinity ID2 8 Zone Intelligent 2-Wire Fire Alarm Panel (ID2/8) Need the datasheet? Our team will email it to you. Request datasheet
