Zeta Infinity ID2 Intelligent 2-Wire Full Function Repeater Panel (ID2/REP)
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
- Repeats alarms and faults from the Infinity ID2 panel
- Can be configured to start and stop panel sounders, silence buzzers and reset the panel
- Each repeater individually configurable for which commands it can send
- Each repeater can run in a different language
- Up to 8 repeaters per system
- RS485 data connection
Frequently bought together
Product details
Part of the Zeta Infinity ID2 intelligent 2-wire fire alarm system. The ID2/REP repeater works with the Infinity ID2 2 zone panel (ID2/2), 4 zone panel (ID2/4) and 8 zone panel (ID2/8). Complete systems are available as the ID2-KIT2, ID2-KIT4 and ID2-KIT8 kits.

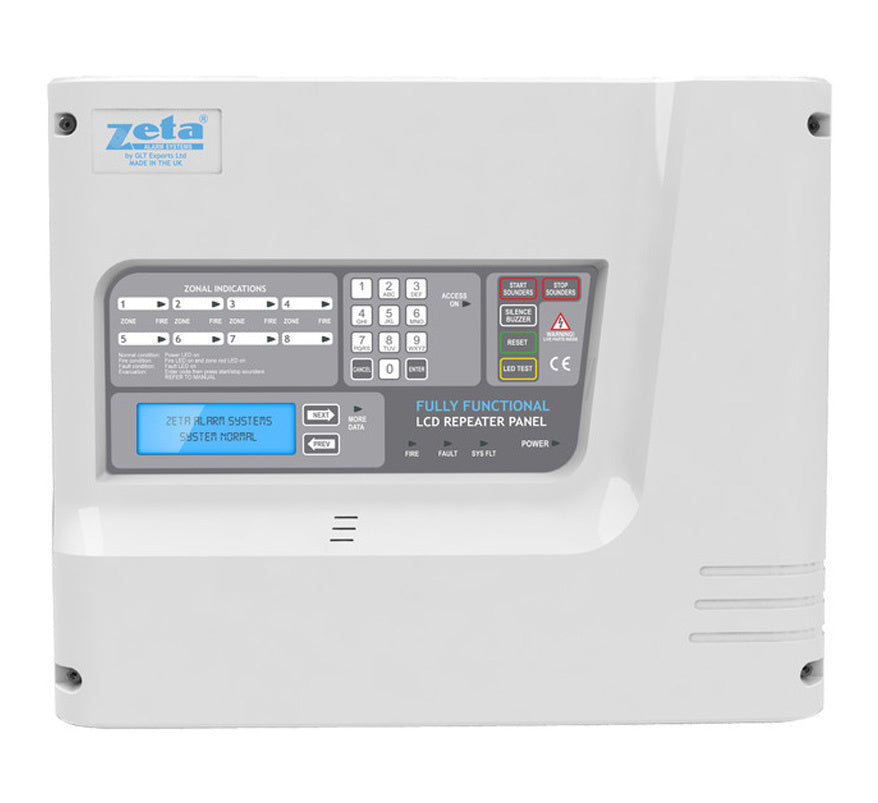

The Zeta Infinity ID2/REP is a fully functional LCD repeater panel for the Zeta Infinity ID2 intelligent 2-wire fire alarm system. It shows alarms and faults from the ID2 panel at a second location.
It connects to the ID2 panel over RS485 using four cores (two for power, two for data). Up to 8 repeaters can be connected per system; the first two can be powered from the panel, with further repeaters needing an external 24 V supply.
Key features
- Repeats alarms and faults from the Infinity ID2 panel
- Can be configured to start and stop panel sounders, silence buzzers and reset the panel
- Each repeater individually configurable for which commands it can send
- Each repeater can run in a different language
- Up to 8 repeaters per system
- RS485 data connection
Technical specifications
- Model: ID2/REP
- Supply voltage: 29 V DC nominal (19-30 V DC)
- Operating current: 40 mA typical
- Fault output: 1 x fault relay, SELV at 1 A (normally energised)
- Maximum repeaters per system: 8
- Connection: RS485
- Enclosure size: 364 x 302 x 90 mm
- Cable entries: 15 x 19 mm top entries
- Operating temperature: -5 to +40 °C
- Humidity: up to 95% non-condensing
Infinity ID2 detectors and call points
ID2-OP optical smoke, ID2-OH combined smoke & heat, ID2-HR rate of rise heat, ID2-OP/S optical smoke with sounder and the ID2-MCP manual call point. See the full Zeta Infinity ID2 range or all Zeta products.
Zeta Infinity ID2 repeater FAQs
How many ID2/REP repeaters can one Infinity ID2 system have?
Up to 8 repeaters per system.
How does the repeater connect to the panel?
Over RS485 using four cores: two for power and two for data.
Does the repeater need its own power supply?
The first two repeaters can be powered from the ID2 panel; further repeaters need an external 24 V supply.
