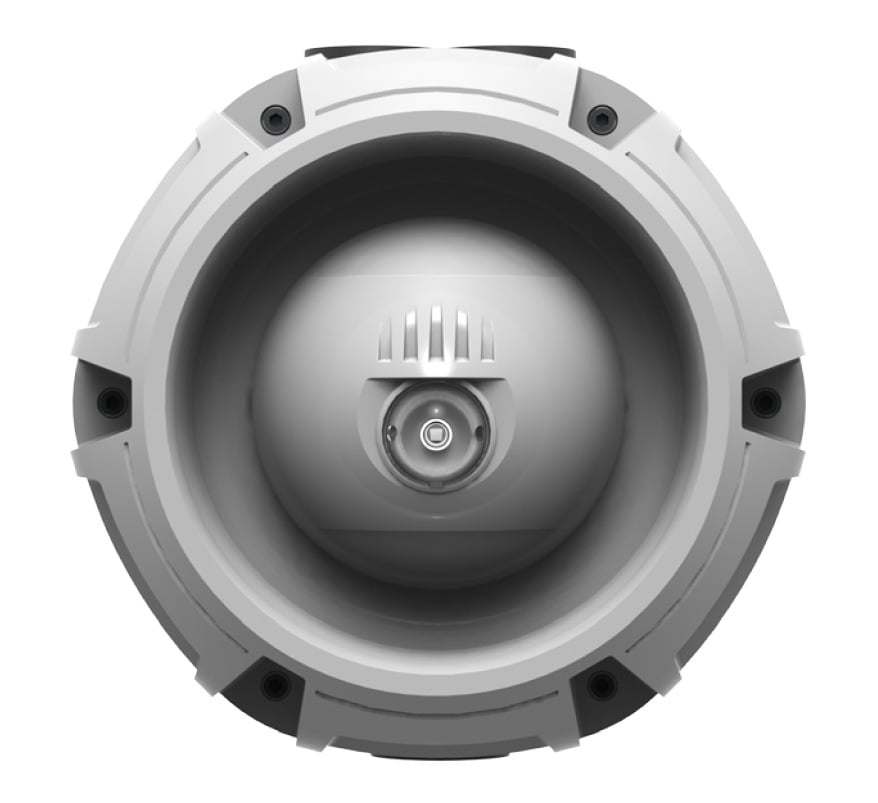

The Zeta Raptor ZRAPB/W is a white weatherproof addressable horn sounder with an integrated visual alarm device (VAD) beacon and white flash, for Zeta Fyreye MKII protocol addressable fire alarm systems. The beacon has a coverage pattern of W-3.0-8.7, flashing at 0.33Hz to 1.5Hz, and the sounder has 16 tones selectable at the control panel. It is designed for an "electronics free" first fix.
Key features
- Complies with EN54 part 3 Type B and EN54 part 23
- Beacon coverage: W-3.0-8.7
- 16 tone patterns (approved tones: Tone 0 and Tone 8)
- IP65 rating (certified to IP33C)
- Surface mounting only; UL V0 flame retardant ABS housing
- 3 x 20mm cable entries (2 top, 1 bottom)
Technical specifications
- Part number: 42-638
- Body colour: White; flash colour: white
- Voltage: 17-28V DC
- Quiescent current: 1.5mA
- Alarm current: 18-43mA
- Flash frequency: 0.33Hz to 1.5Hz
- Sound output: 96.9dB ±3dB @ 1m (Tone 0, reverberant conditions)
- Operating temperature: -25°C to +70°C
- Size: 150 x 146 x 107.5mm
- Weight: 550g
