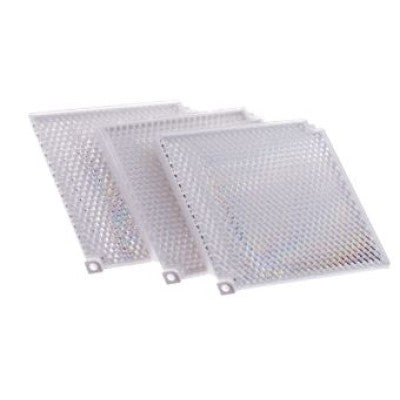

The Ziton FD-LRK is the long-range reflector kit for the Fireray One motorised reflective beam smoke detector (Ziton FD001R). It is the Fireray Prism (Long Range), FFE part 1010-000. On its own the Fireray One covers detector-to-reflector distances of 5m to 50m. With the Long Range Kit, the range extends to 50m to 120m, so a single detector can cover a longer distance.
The Fireray One uses four reflectors for distances over 50m. The kit is mounted opposite the detector, which uses Auto-Alignment to steer its beam onto the reflector.
Key features
- Extends Fireray One range to 50m–120m
- For the Ziton FD001R / FFE Fireray One reflective beam detector
- Official Fireray accessory (FFE 1010-000)
- Works with the Fireray One Auto-Alignment system
Technical specifications
- Part number: FD-LRK (FFE 1010-000, Fireray Prism – Long Range)
- Compatible detector: Fireray One (Ziton FD001R)
- Detector to reflector distance with kit: 50m to 120m
- Detector to reflector distance without kit: 5m to 50m
- Reflectors required above 50m: 4
