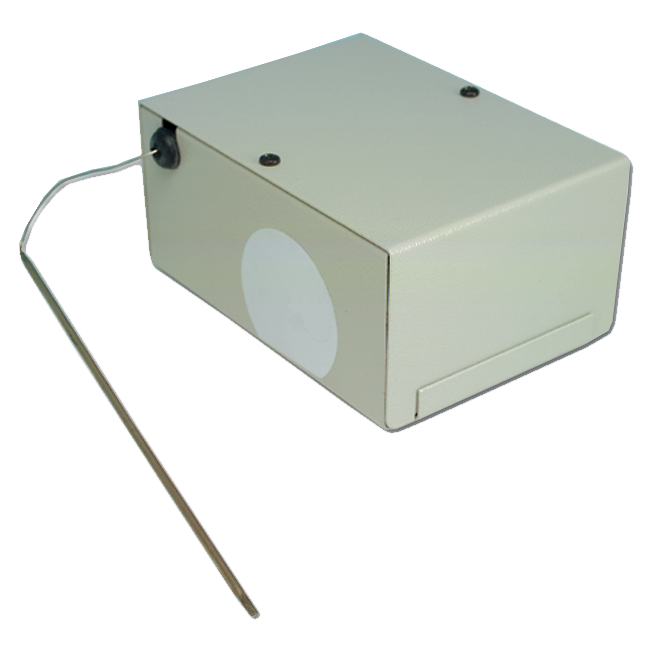

High Temperature Heat Probe (Unlatched)
Thermal temperature probe used to detect temperature changes at a specific point. The product consists of a sensitive probe with 1m of stainless steel capillary piping and a connection box for external wiring connections. The maximum distance between the probe and the connection box is 1m.
The activation temperature is adjustable between 50 -300oC
2 wire device it can be connected direct to a conventional zone, Current consumption 100mA max
Non-latching operation unit will reset automatically alarm or fault until reset.
Dimensions (mm): Probe 150 long x 3 Dia, Connection box 100w x 140h x 70d
