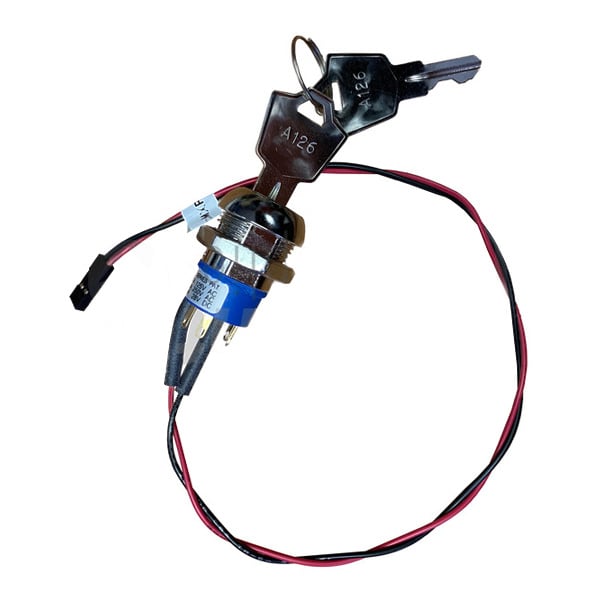

The Advanced MXP-515 is an untrapped 3-position key switch assembly for Advanced MxPro 5 (MX-5000) fire alarm control panels. MxPro 5 panels support direct installation of individual key switches, which can be programmed for functions such as enable/disable, group isolation, class change or sensitivity mode change.
Key features
- 3-position key switch assembly, untrapped
- Requires 2 programmable inputs per switch
- Enable/disable controls
- Group isolate to disable inputs and outputs across a network
- Start or enable a class change
- Control of multi-sensor/device sensitivity mode change
- Simple to install and configure
- Up to 8 key switches on MxPro 5 2-loop and 4-loop panels (limited to 4 if an on-board printer is fitted); 1 on the 1-loop panel
Technical specifications
-
Part number: MXP-515
-
Type: 3-position key switch assembly, untrapped
-
Compatibility: All MxPro 5 series control panels
-
Inputs required: 2 programmable inputs
