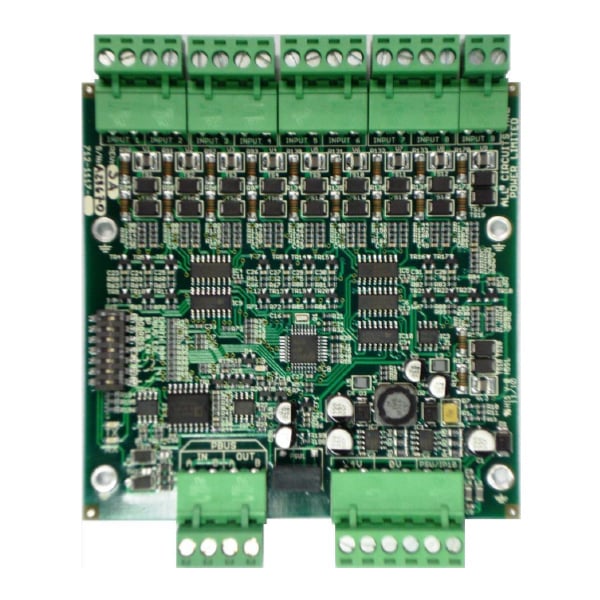

The Advanced MXP-537 is a 10-way programmable monitored input card for MxPro 5 fire alarm control panels. It connects to the panel peripheral bus (P-Bus) and provides ten switch inputs, each monitored for open and short circuit and individually programmable, for example as Fire, Fault or Alarm, using the panel's dynamic cause-and-effect rules.
Up to 16 cards can be connected to an MxPro 5 series panel, giving up to 160 additional monitored inputs.
Key features
- 10 monitored switch inputs (open and short circuit)
- Each input individually programmable for Fire, Fault, Alarm and more
- Up to 16 cards per panel (160 inputs)
- EN54-18 approved switch monitor circuit
- Configured with PC-NeT-003
- 3-year warranty as standard
Technical specifications
-
Part code: MXP-537
-
Inputs: 10 programmable monitored switch inputs
-
Supply: 24V DC (17-28V), 25mA with 10 inputs wired with 6K8 EOLs at 24V
-
On-board indication: RS485 transmit/receive and heartbeat
-
Standards: BS EN54-18 compatible
-
Operating temperature: -5°C to 40°C
-
Relative humidity: 95% non-condensing (maximum)
-
PCB dimensions (H x W x D): 100 x 105 x 18mm
-
Weight: 75g
-
Compatibility: All MxPro 5 series control panels
